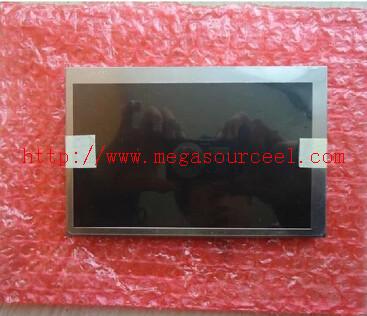

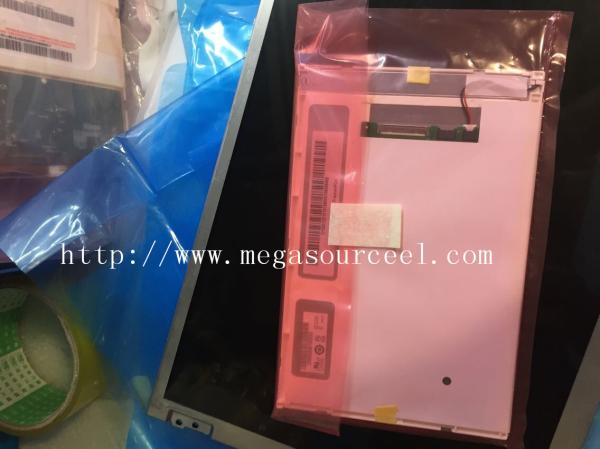

LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
Specifications
Place of Origin :
TAIWAN
Brand Name :
AUO
Certification :
RoHS Compliant
Model Number :
G057VTN01.1
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000pcs
Signal Category : :
TTL
Signal Class :
CMOS (1 ch, 6-bit)
Input Voltage for Panel :
3.3V (Typ.)
Input Current for Panel :
150/165mA (Typ./Max.)
Description

LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock

Basic Information

Panel Brand : LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
Panel Model : G057VTN01.0
Model Alias : G057VTN01 V0
Panel Type : a-Si TFT-LCD , Panel
Operating Temperature : -30 ~ 85 °C
Storage Temperature : -30 ~ 85 °C
Vibration Resistance : 6.8G (66.64 m/s²)

Mechanical Features

Panel Size : 5.7 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 150/165g (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 118.2×89.4 mm (H×V)
Outline Dimension : 144×104.6 mm (H×V)
Outline Depth : 12.3/12.8 (Typ./Max.) mm
Holes & Brackets : Rear mounting Pole (4-Ф2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 530 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 15/10 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)

Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 3.62W (Typ.)

Other hot offer of LCD panel,please check if you need any of them:

Panel Model Stocks Brand Size Resolution
LTI550HN08 305 Samsung 55" 1920×1080
N133HSE-EA1 11104 Innolux 13.3" 1920×1080
LQ104V1DG51 2603 SHARP 10.4" 640×480
LQ104S1DG21 3141 SHARP 10.4" 800×600
AA084XB01 740 Mitsubishi 8.4" 1024×768
M190EG01 V2 6388 AUO 19.0" 1280×1024
G150XG01 V0 4403 AUO 15.0" 1024×768
G084SN03 V1 2422 AUO 8.4" 800×600
B101AW06 V1 HW0A 17960 AUO 10.1" 1024×600
N101ICG-L21 Rev.A1 33272 Innolux 10.1" 1280×800
LQ104V1DG21 3056 SHARP 10.4" 640×480
LQ084S3DG01 732 SHARP 8.4" 800×600
NL6448BC33-64 1731 NLT 10.4" 640×480
NL6448BC26-09 983 NLT 8.4" 640×480
NL6448BC20-18D 2938 NLT 6.5" 640×480
AA104XD02 1393 Mitsubishi 10.4" 1024×768
G150XG01 V1 6483 AUO 15.0" 1024×768
N140BGE-L42 1030 Innolux 14.0" 1366×768
LTI460HN01 119 Samsung 46" 1920×1080
LQ121S1DG41 2205 SHARP 12.1" 800×600
LQ10D368 2501 SHARP 10.4" 640×480
LQ057Q3DC12 455 SHARP 5.7" 320×240
LTM170E8-L01 7413 Samsung 17.0" 1280×1024
NL6448BC33-46 4736 NLT 10.4" 640×480
AA084SB01 651 Mitsubishi 8.4" 800×600
G156XW01 V0 13126 AUO 15.6" 1366×768
G150XG03 V2 3420 AUO 15.0" 1024×768
G104VN01 V0 744 AUO 10.4" 640×480
G085VW01 V3 100 AUO 8.5" 800×480
G084SN05 V7 2676 AUO 8.4" 800×600
G057VN01 V1 2490 AUO 5.7" 640×480
G057QN01 V1 560 AUO 5.7" 320×240
N173HGE-E11 24937 Innolux 17.3" 1920×1080
N116BGE-L32 116 Innolux 11.6" 1366×768
N140BGE-L22 2100 Innolux 14.0" 1366×768
LM215WF4-TLG1 308427 LG Display 21.5" 1920×1080
AC150XA01 16226 Mitsubishi 15.0" 1024×768
LQ121S1LG51 1173 SHARP 12.1" 800×600
LQ084V3DG02 170 SHARP 8.4" 640×480
LQ084S3LG01 1202 SHARP 8.4" 800×600
LQ064V3DG01 243 SHARP 6.4" 640×480
LQ057V3DG02 9 SHARP 5.7" 640×480
LQ038Q5DR01 16744 SHARP 3.8" 320×240
NL8060BC26-27 956 NLT 10.4" 800×600
NL6448BC33-54 1609 NLT 10.4" 640×480
NL6448BC20-08E 1407 NLT 6.5" 640×480
LM201U05-SLL1 10824 LG Display 20.1" 1600×1200
LB064V02-TD01 2578 LG Display 6.4" 640×480

Competitive Advantage:
Warranty :180 days !
Free shipping: Order over $1000 win a free shipment fee
(goods weight below 3Kg) ,during 20130901-20130930 .


Why buy from us >>> Fast / Safely / Conveniently
• Mega Source is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

LCD Panel Types AUO G057VTN01.1 TTL 5.7 inch RGB Vertical Stripe new in stock
