Specifications
Place of Origin :
TAIWAN
Brand Name :
tianma
Certification :
Standard Certification
Model Number :
TM030LDHT2
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
5000
Size :
3.0inch
Part number :
TM030LDHT2
Brand :
Tianma
Description

LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2

1,TIANMA TM030LDHT2 Basic Information

Panel Brand : LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
Panel Model : TM030LDHT2
Panel Type : a-Si TFT-LCD , LCM
Application :
  • LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
Operating Temperature : -20 ~ 70 °C
Storage Temperature : -30 ~ 80 °C
RoHS : LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
Specific Feature :
  • LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
  • LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
  • LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2

2,TIANMA TM030LDHT2 Mechanical Features

Panel Size : 3.0 INCH LCD
Dot Resolution : 240(RGB)×400 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 156 PPI
Aspect Ratio : 3:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.054×0.162 mm (H×V)
Pixel Pitch : 0.162×0.162 mm (H×V)
Surface : Hard coating (3H)
Active Area : 38.88×64.8 mm (H×V)
Bezel Area : 39.88×65.8 mm (H×V)
Outline Dimension : 47.28×76.4 mm (H×V)
Landscape or Portrait : Portrait type
Touch Panel : Without

3,TIANMA TM030LDHT2 Optical Features

Display Mode : ECB, Normally White, Transflective
Brightness : 130 cd/m² (Typ.)
Contrast Ratio : 100 : 1 (Typ.) (Transmissive)
Contrast Ratio : 8:1 (Typ.) (Reflective)
Display Color : 65K/262K ()
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.300; Wy:0.330
Sunlight Readable : Y

4,TIANMA TM030LDHT2 Electronics Feature

Vertical Frequency : 60Hz

5,TIANMA TM030LDHT2 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Interface Type : Included in panel signal interface
Lamp Driver Board : No

6,TIANMA TM030LDHT2 Signal Interface

Interface Type : FPC

7,TIANMA TM030LDHT2 Packing Form

Standard original packing

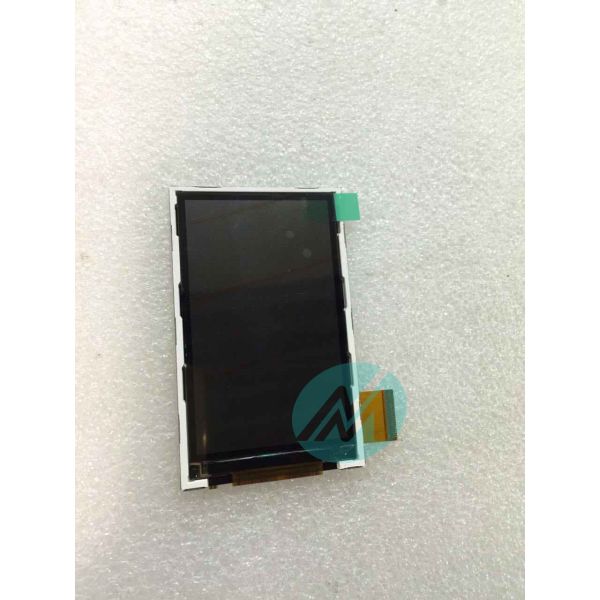

Detail pics for LCD Panel Types tianma semi-permeable handheld devices with 3 inch screen TM030LDHT2
