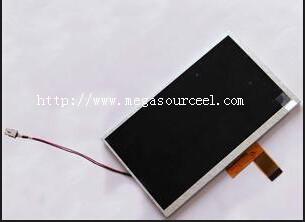

250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
250cm/m2 HSD070I651-F00 7.0 LCD Panel types for HannStar 480(RGB)*234
Specifications
Place of Origin :
TAIWAN
Brand Name :
HannStar
Certification :
Standard Certification
Model Number :
HSD070I651-F00
MOQ :
5 PCS
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
2-3 days
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
5000
Resolution (pixel) :
480*234
Viewing Angle (R/L/U/L) :
50/70/70/70
Brightness (cd/m²) :
250cm/m2
Size :
7.0INCH
Panel Brand : :
HannStar
Description

quick details:

HSD070I651-F00 250cm/m2 LED 7.0" inch LCD Panel for HannStar 480(RGB)*234 LCD display screen panel for tablet PC

Panel Brand : HannStar
Panel Model : HSD070I651-F00
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 480(RGB)×234
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×86.58 mm
Outline : 164.9×100 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : Full color
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S5P WLED Without Driver
Signal Interface : TFT Specific Analog RGB , 26 pins
Input Voltage : 3.3/5.0/15/-10V (Typ.)(DVDD/VGH/VGL)


HannStar HSD070I651-F Series Model

Panel Model Size Resolution cd/m2 C/R Backlight Interface
HSD070I651-F20 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F101 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F10 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F021 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F02-02991 7.0" 480×234 0 500:1 No B/L Analog
HSD070I651-F011 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F01-02991 7.0" 480×234 0 500:1 No B/L Analog
HSD070I651-F01-0299 7.0" 480×234 0 500:1 No B/L Analog
HSD070I651-F01 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F001 7.0" 480×234 200 500:1 WLED Analog
HSD070I651-F00-02991 7.0" 480×234 0 500:1 No B/L Analog
HSD070I651-F00-0299 7.0" 480×234 0 500:1 No B/L Analog
HSD070I651-F00 7.0" 480×234 200 500:1 WLED Analog

7.0", 480×234, Analog, 2D, WLED, Flat, Panel Hot Model

Panel Model Size Resolution cd/m2 C/R Backlight Interface
AT070TN07 V.D 7.0" 480×234 200 300:1 WLED Analog
AT070TN07 V.B 7.0" 480×234 350 300:1 WLED Analog
CLAA070JA0BCW 7.0" 480×234 400 450:1 WLED Analog
AT070TN07 7.0" 480×234 350 300:1 WLED Analog
AT070TN07 V.A 7.0" 480×234 200 300:1 WLED Analog
CLAA070JA08CW 7.0" 480×234 300 400:1 WLED Analog
A070FW03 V9 7.0" 480×234 280 400:1 WLED Analog
A070FW03 V7 7.0" 480×234 280 400:1 WLED Analog
A070FW03 VB 7.0" 480×234 250 400:1 WLED Analog
A070FW03 VD 7.0" 480×234 400 400:1 WLED

Analog
