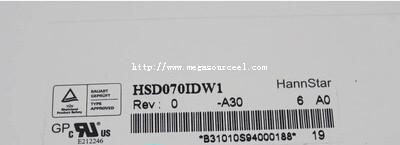

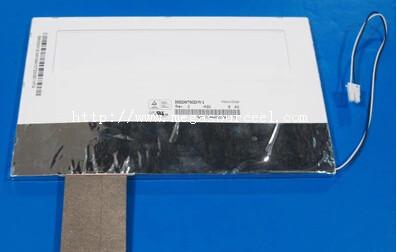

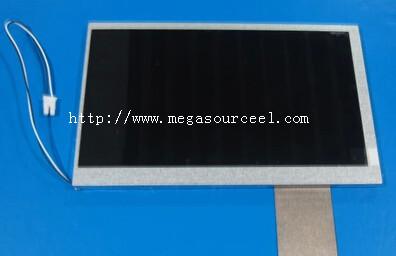

250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
Specifications
Place of Origin :
TAIWAN
Brand Name :
HannStar
Certification :
Standard Certification
Model Number :
HSD070IDW1-A30
MOQ :
5 PCS
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
2-3 days
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
5000
Resolution (pixel) :
800*480
Viewing Angle (R/L/U/L) :
50/70/70/70
Contrast Ratio :
500:1
Brightness (cd/m²) :
250(cd/m²)
Description

quick details:

Model

HSD070IDW1-A30

Size7.0"
Resolution (pixel)

800*480

Active Area(mm)

108.00*64.80

Pixel Pitch (mm)

0.360x0.360

Display Mode

TM with Normally White

Uniformity(%)

80

NTSC(%)

50

Color Depth

16.7M

Viewing Angle (R/L/U/L)

50/70/70/70

Brightness (cd/m²)250
Contrast Ratio500:1
Response Time (ms)20(on+off)
Outline Dimension (mm)

120.70*75.80*3.10

Weight (g)

TBD

Light Source

LED

Temperature Range

operating: -20 to +70°C
storage: -30 to +80 °C

Humidity

operation: 90 (%RH)
storage: 90 (%RH)

Surface Treatment

Anti-Glare(3H)

Electrical Interface

RGB 24 bits

ROHS Compliance

ROHS Compliance

7.0 inch LCD digital screen

Panel Brand: HannStar
Panel Model: HSD070IDW1-A30
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness:200 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 5/20 (Typ.) (Tr/Td) (ms)
Viewing Angle: 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 3S7P WLED
Signal Interface: TTL (1 ch, 6/8-bit)
Input Voltage: 3.0/10/15/-7V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS 250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel



250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480250(cd/m²) HannStar 7.0 inch TFT LCD Digital Screen HSD070IDW1-A30 800(RGB)*480
Why buy from us >>> Fast / Safely / Conveniently

  • Mega Source is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
  • Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>

  • Contact us by email & sent your inquire with your Transport destination .
  • Online chat, the commissioner would be responded ASAP.

Service >>>

  • Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
  • We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
  • We are committed to providing fast, convenient and safe transportation service to global buyer.


Tag : For LCD Offers:
4＂～15＂(4 inch to 15 inch ) LCD Display Screen Panel can be applied to AMPIRE Arima AUO BERISE BOE BYD CHILIN Chimei CPC CMEL CPT CSOT Data Image EDT E Ink e-king Epson FUJITSU Giantplus HannStar HYDIS IDTech INNOLUX IRICO IVO JCT Kyocera KOE LG LiteMax Mitsubishi NAN YA NLT Pixel Qi Powertip RiTdisplay QDI SAMSUNG SANYO SHARP SGD SII SONY STI SVA-NEC TIANMA TOSHIBA TopSun TPO TRULY TSINGTEK UNIPAC Visionox WiseChip YeeboMore products information, pls contact our sales group sales@megasourceel.com
