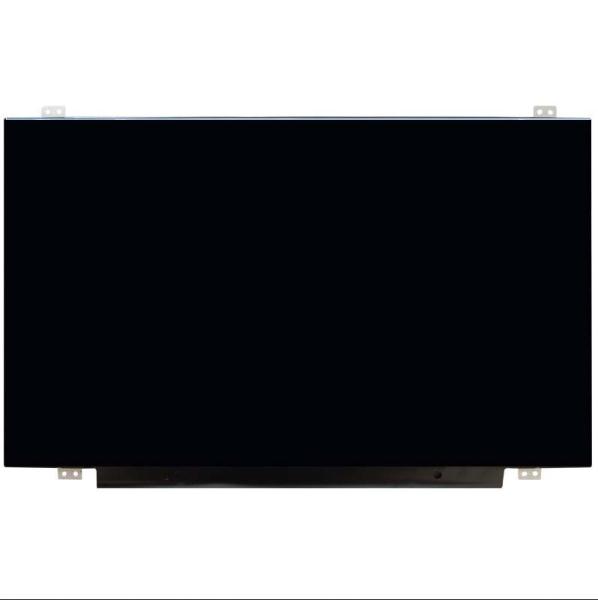

High quality Laptop LCD Screen for 17.3 1920*1080 N173HCE-E31
High quality Laptop LCD Screen for 17.3 1920*1080 N173HCE-E31
High quality Laptop LCD Screen for 17.3 1920*1080 N173HCE-E31
High quality Laptop LCD Screen for 17.3 1920*1080 N173HCE-E31
Specifications
Place of Origin :
TAIWAN
Brand Name :
Innolux
Certification :
Standard Certification
Model Number :
N173HCE-E31
MOQ :
5 PCS
Price :
Please Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
3-5 Working days
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
5000
Part no :
N173HCE-E31
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1920(RGB)×1080 , FHD
Pixel Format :
RGB Vertical Stripe
Display Area :
381.888(W)×214.812(H) mm
Brightness :
300 cd/m² (Typ.)
Contrast Ratio :
700:1 (Typ.) (TM)
Lamp Type :
WLED , 15K hours , With LED Driver
Touch Screen :
Without
Signal Interface :
eDP (2 Lanes) , 30 pins Connector
Input Voltage :
3.3V (Typ.)
Environment :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Description

N173HCE-E31 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.0663×0.1989 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1989×0.1989 mm (H×V)
Mechanical Size :
Display Area
381.888×214.812 mm (H×V)
Bezel Area
-
Outline Dim.
399.5×250.51 mm (H×V)
Outline Depth
3.57/4.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Holes & Brackets :
Face mounting holes (8 pcs) on up, down slugs
Other Features :
Weight
511/550g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)

N173HCE-E31 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AAS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14/11 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25/1.54 (Max.)(5/13 points) High quality Laptop LCD Screen for 17.3 1920*1080 N173HCE-E31
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
94% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Why buy from us >>> Fast / Safely / Conveniently

  • Mega Source is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
  • Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>

  • Contact us by email & sent your inquire with your Transport destination .
  • Online chat, the commissioner would be responded ASAP.

Service >>>

* Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. Buyers don’t need to worry about shipping problem

*We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.

*We are committed to providing fast, convenient and safe transportation service to global buyer.

Application of LCD :

Industrial control LCD screen, injection molding machine, cnc machine, monitor, military equipment, industry control, banking terminal, in-car navigation, Monochrome screen, DSTN ,in-car navigation screen ect.
