Quick Detail:

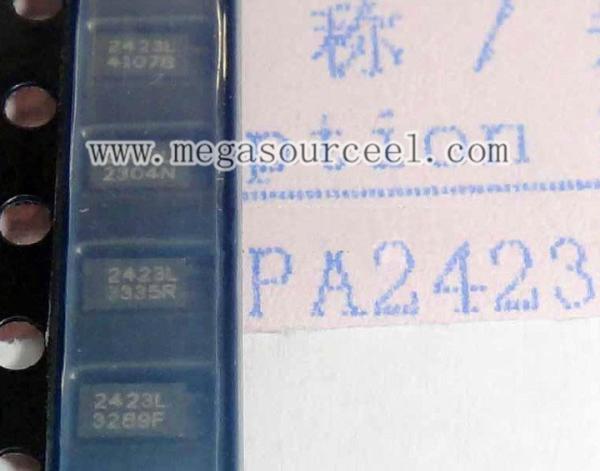

RangeChargerTM 2.4 GHz BluetoothTM Power Amplifier Evaluation Kit

Description:

The PA2423L-EK1 evaluation kit provides an easy to use, self-contained system for evaluating the RF performance and DC parameters of the PA2423L amplifier.

The PA2423L evaluation board requires minimal board area and components and in addition, it has been designed to allow the PA2423L to meet the Bluetooth tm Class 1 wireless technology specifications, with particular attention to gain and output power.

Each evaluation kit contains:

• Pre-assembled evaluation board with input &

output matching networks. Standard SMA

connectors for interconnection to test equipment

• A test report of the delivered board

• A PA2423L datasheet

• A PA2423L-EK1 data sheet

Applications:

-- Easy evaluation of the PA2423L Power Amplifier

-- Low Cost Design – 8 components required

-- Minimum board space required – 340 mils x 220 mils

-- High Output Power – 22.5 dBm

-- Schematic and layout ready for production builds

-- Lead free 6 pin QFN Package

Specifications:
