Quick Detail:

USE GAL DEVICES FOR NEW DESIGNS

Description:

The PALCE610 is a general purpose PAL device and is functionary and fuse map equivalent to the EP610. It can accommodate logic functions with up to 20 inputs and 16 outputs. There are 16 I/O macrocells that can be indrviduary configured to the user’s specifications. The macrocells can be configured as either registered or combinatorial. The registers can be configured as D.T.J-K. or S-R filp-flops.

The PALCE610 uses the familiar sum-of-productors logic with programmable-AND and fixed-OR structure. Eight product terms are brought to each macrocell toprovide logic implementations.

The PALCE610 is manufactured using advanced CMOS EE technology providing low power consumption. Moreover, it is a high-speed device having a worst-case t_pd of 15ns .Space-saving24-pin SKINNYDIP and 28-pin PLCC packages are offered.

This device can be quickly erased and reprogrammed providing for easy prototyping. Once a device is programmed the security bit can be used to provide protection from copying a proprietary design.

Applications:

• Lattice/Vantis Programmable Array Logic(PAL) architecture
• Electrically-erasable CMOS technology providing half power(90mA) at high speed (-15=15-ns T_pd -25=25-ns T_PD)
• Sixteen macrocells with configurable I/O architecture
• Registered or combinatorial operation
• Registers programmable as D.T.J-K. or S-R
• Asynchronous clocking via product term or bank register clocking from external pins
• Register preload for initialization

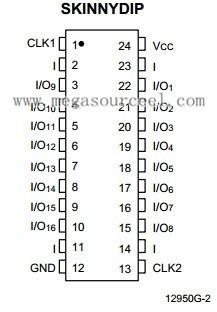

• Space-saving 24-pin SKINNYDIP and 28-pin PLCC packages
• Fully tested for 100% programming yield and high reliability
• Extensive third-party software and programmer support through Fusion PLD partners

Specifications:
