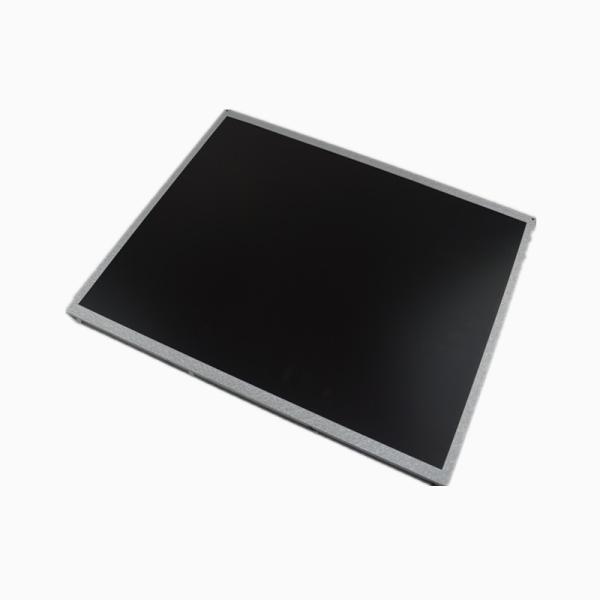

17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
Specifications
Place of Origin :
THAILAND
Brand Name :
Innolux
Certification :
LEAD FREE/ROHS COMPLIANT
Model Number :
M170EGE-L20
MOQ :
1pcs
Price :
Contact for Sample
Packaging Details :
Standard packaging
Delivery Time :
3-5 Working days
Payment Terms :
T/T in advance, Paypal, Western Union
Supply Ability :
1000
Panel Model :
M170EGE-L20
Type :
a-Si TFT-LCD, LCM
Configuration :
RGB Vertical Stripe
Pixel Format :
1280(RGB)×1024 [SXGA] 96PPI
Treatment :
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio :
1000:1 (Typ.) (TM)
Operating Mode :
TN, Normally White, Transmissive
Light Source :
WLED [12S4P] , 50K hours , W/O Driver
Touch Panel :
Without
Description

M170EGE-L20 Mechanical Features

Screen Size : 17.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×1024, SXGA RGB Vertical Stripe 0.088×0.264 mm 0.264×0.264 mm [96PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
337.92×270.336 mm 341.9×274.4 mm 358.5×296.5 mm 10.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 5:4 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
1.40/1.50Kgs (Typ./Max.) - Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel

M170EGE-L20 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) TN, Normally White, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 85/85/80/80 (Typ.)(CR≥10)17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20 1/4 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 95% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points) 17 Inch 1280*1024 And Contrast Ratio 1000:1 Connector 30 Pins Panel M170EGE-L20
