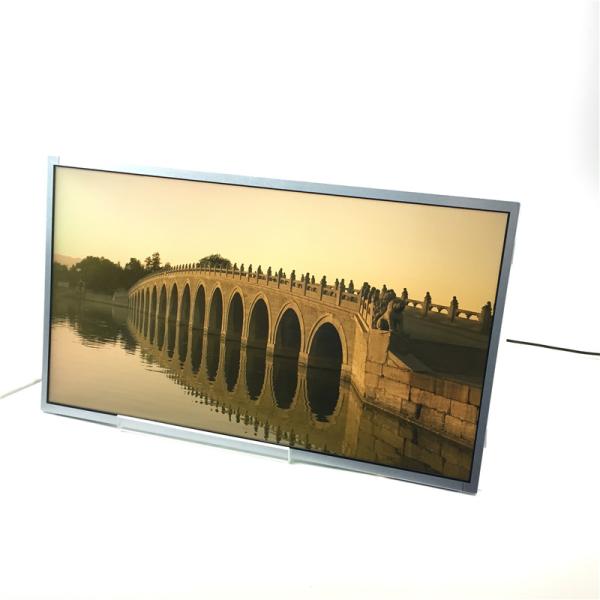

Best price LCD Display Screen 19.5 Inch New Original M195FGE-L20 1600×900
Best price LCD Display Screen 19.5 Inch New Original M195FGE-L20 1600×900
Best price LCD Display Screen 19.5 Inch New Original M195FGE-L20 1600×900
Best price LCD Display Screen 19.5 Inch New Original M195FGE-L20 1600×900
Specifications
Place of Origin :
JAPAN
Brand Name :
Innolux
Certification :
ROHS COMPLIANT
Model Number :
M195FGE-L20
MOQ :
1 PCS
Price :
Contact for Sample
Packaging Details :
Standard packaging
Delivery Time :
3-5 Working days
Payment Terms :
T/T in advance, Paypal, Western Union
Supply Ability :
1000
Panel Model :
M195FGE-L20
Type :
a-Si TFT-LCD , LCM
Pixel Format :
1600(RGB)×900 [HD+]
Configuration :
RGB Vertical Stripe
Treatment :
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio :
1000:1 (Typ.) (TM)
Touch Panel :
Without
Interface Type :
LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply :
5.0V (Typ.)
Environment :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

M195FGE-L20 Mechanical Details

Pixel Features :
Pixel Format
1600(RGB)×900, HD+
Dot Pitch
0.09×0.2664 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.27×0.2664 mm (H×V)
Mechanical Size :
Display Area
432×239.76 mm (H×V)
Bezel Area
435.3×243.06 mm (H×V)
Outline Dim.
452×263 mm (H×V)
Outline Depth
7.6/11.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
-
Holes & Brackets :
Side mounting holes (4-M3) on up, down bezel
Other Features :
Weight
1.43/1.50Kgs (Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)

M195FGE-L20 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
5 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points) Best price LCD Display Screen 19.5 Inch New Original M195FGE-L20 1600×900
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
