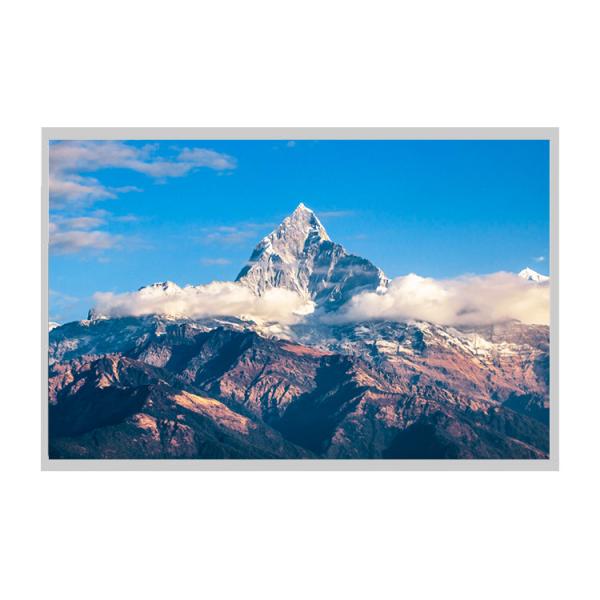

Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel
Specifications
Place of Origin :
Japan
Brand Name :
Innolux
Certification :
RoHS Compliant
Model Number :
G185BGE-L01
MOQ :
1 Pcs
Price :
Pls Contact sales team

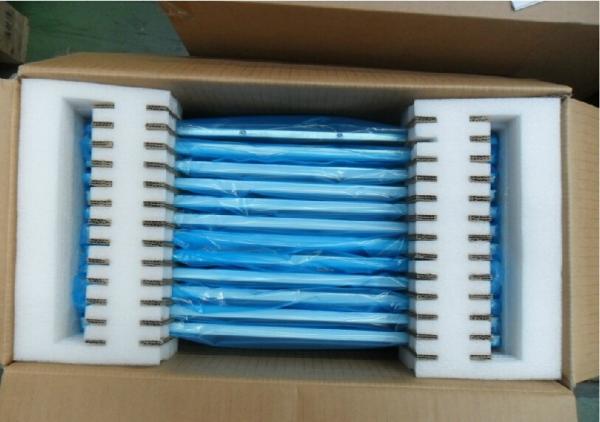

Packaging Details :
Standard packaging
Delivery Time :
3-5 Working days
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
1000
Part no :
G185BGE-L01
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
1366(RGB)×768 , WXGA
Pixel Format :
RGB Vertical Stripe
Display Area :
409.8(W)×230.4(H) mm
Brightness :
300 cd/m² (Typ.)
Contrast Ratio :
1000:1 (Typ.) (TM)
Signal Interface :
LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage :
5.0V (Typ.)
Environment :
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
Description

G185BGE-L01 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
300 (Typ.) 85/85/80/80 (Typ.)(CR≥10) 1.5/3.5 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
72% 96% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
75% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.33 (Max.)(9 points) Hot offer best price G185BGE-L01 18.5 inch 1366*768 LCD display screen panel

G185BGE-L01 Mechanical Features

Panel Size : 18.5"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1366(RGB)×768 [WXGA] RGB Vertical Stripe 0.300×0.300 0.100×0.300
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
409.8(H) × 230.4(V) 413.4(H) × 234.0(V) 430.37(H) × 254.6(V) 16.6 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) -
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight Panel Cover Treatment
1.58/1.65Kgs (Typ./Max.) - Antiglare (Haze 25%), Hard coating (3H)
