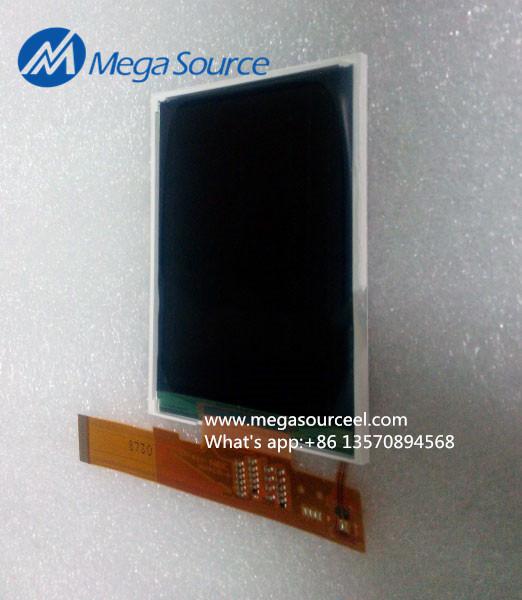

F03509-01V 3.5 a-Si TFT-LCD CELL for CMO
F03509-01V 3.5 a-Si TFT-LCD CELL for CMO
Specifications
Place of Origin :
Japan
Brand Name :
CMO
Certification :
RoHS Compliant
Model Number :
F03509-01V
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000
Panel Model :
F03509-01V
Panel Brand :
CMO
Descrition :
a-Si TFT-LCD ,3.5 inch, 320×480
Panel Type :
a-Si TFT-LCD
Description

F03509-01V 3.5" a-Si TFT-LCD CELL for CMO

Specification for F03509-01V:

F03509-01V Basic Information

Panel Model

F03509-01V

Panel Brand

CMO

Descrition

a-Si TFT-LCD ,3.5 inch, 320×480

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 70 °C

Storage Temperature

-30 ~ 80 °C

Remarks

ODF Cut, shipping size 431.28(H)x 332.84(V)x1.0(D)

F03509-01V Mechanical Features

Dot Resolution

320(RGB)×480 (HVGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

166 PPI

Aspect Ratio

2:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.051×0.153 mm (H×V)

Pixel Pitch

0.153×0.153 mm (H×V)

Weight

360g (Typ.)(Mother panel)

Surface

Without Polarizer

Active Area

48.96×73.44 mm (H×V)

Outline Dimension

53.36×81.64 mm (H×V)

Outline Depth

1.0 (Typ.) mm

Landscape or Portrait

Portrait type

Touch Panel

Without

F03509-01V Optical Features

Display Mode

MVA, Normally Black, Transmissive

Brightness

0 cd/m²

Contrast Ratio

500 : 1 (Typ.) (Transmissive)

Response Time

30 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

White color Chromaticity

Wx:0.290; Wy:0.321

Transmissivity

5.0% (Typ.)(with Polarizer)

Sunlight Readable

N

F03509-01V Electronics Feature

Reverse Scan

No

Driver IC

Suggest ILI9481, OTM4801A

F03509-01V Backlight System

Lamp Type

No B/L
