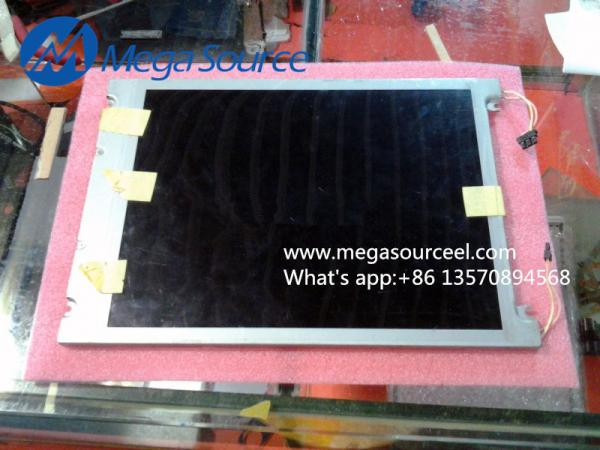

Buy Original New HX104X01-201 Industrial 10.4 Inch HYDIS LCD
Buy Original New HX104X01-201 Industrial 10.4 Inch HYDIS LCD
Specifications
Place of Origin :
Japan
Brand Name :
BOE HYDIS
Certification :
RoHS Compliant
Model Number :
HX104X01-201
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
MODULE
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
1000
Panel Model :
HX104X01-201
Panel Brand :
BOE HYDIS
Descrition :
a-Si TFT-LCD ,10.4 inch, 1024×768
Panel Type :
a-Si TFT-LCD
Description

Buy Original New HX104X01-201 Industrial 10.4 Inch HYDIS LCD

Specification for HX104X01-201:

HX104X01-201 Basic Information

Panel Model

HX104X01-201

Panel Brand

BOE HYDIS

Descrition

a-Si TFT-LCD ,10.4 inch, 1024×768

Panel Type

a-Si TFT-LCD

Operating Temperature

-20 ~ 80 °C

HX104X01-201 Mechanical Features

Dot Resolution

1024(RGB)×768 (XGA)

Pixel Configuration

RGB Vertical Stripe

Pixel Density

123 PPI

Aspect Ratio

4:3 (H:V)

Form Factor

Flat Rectangle Display

Dot Pitch

0.0685×0.2055 mm (H×V)

Pixel Pitch

0.2055×0.2055 mm (H×V)

Weight

125g (Typ.)

Surface

Antiglare

Active Area

210.432×157.824 mm (H×V)

Outline Dimension

221.3×166.25 mm (H×V)

Outline Depth

1.405 (Typ.) mm

Landscape or Portrait

Landscape type

Touch Panel

Without

HX104X01-201 Optical Features

Display Mode

AFFS, Normally Black, Transmissive

Brightness

0 cd/m²

Contrast Ratio

600 : 1 (Typ.) (Transmissive)

Display Color

262K (6-bit)

Color Gamut

40% NTSC (CIE1931)

Response Time

28 (Typ.)(Tr+Td)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction

Symmetry

Transmissivity

6.3% (Typ.)(with Polarizer)

Sunlight Readable

N

HX104X01-201 Electronics Feature

Vertical Frequency

60Hz

Reverse Scan

No

HX104X01-201 Backlight System

Lamp Type

No B/L

HX104X01-201 Signal Interface

Signal Category

LVDS

Signal Class

LVDS (1 ch, 6-bit)

Input Voltage for Panel

3.3V (Typ.)

Input Current for Panel

270mA (Typ.)

Panel Power Consumption

0.9W (Typ.)

Interface Type

Connector

Signal Interface

HRS - DF19L-14P-1H, Pitch:1.0 mm, Pin:14 pins
