LC185EXN-SDA1 LG Screen 18.5 1366x768 LC185EXN-SDA1 Display
LC185EXN-SDA1 LG Screen 18.5 1366x768 LC185EXN-SDA1 Display
Specifications
Place of Origin :
MALAYSIA
Brand Name :
LG
Certification :
Lead free / RoHS Compliant
Model Number :
LC185EXN-SDA1
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
1000
Panel Model :
LC185EXN-SDA1
Brand :
LG
Size :
18.5"
Resolution :
1366×768
Description

LC185EXN-SDA1 LG Screen 18.5" 1366x768 LC185EXN-SDA1 Display

1,LG Display LC185EXN-SDA1 Application Details

Basic Information : Brand LC185EXN-SDA1 LG Screen 18.5 Model LC185EXN-SDA1
Type LCM a-Si TFT-LCD Used For
  • LC185EXN-SDA1 LG Screen 18.5
Screen Size 18.5" Alias LC185EXN (SD)(A1)
Environment : Storage Temp. -20 ~~ 60 °C Operating Temp. 0 ~~ 50 °C
RoHS LC185EXN-SDA1 LG Screen 18.5 Vibration -
Typical Features :
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5
  • LC185EXN-SDA1 LG Screen 18.5

2,LG Display LC185EXN-SDA1 Mechanical Details

Pixel Features : Resolution 1366(RGB)×768 (WXGA) Dot Pitch(mm) 0.100×0.300 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.300×0.300 (H×V)
Mechanical Size : Active Area(mm) 409.8(H) × 230.4(V) Bezel Area(mm) 413.4(H) × 234.0(V)
Outline Dim.(mm) 430.4(H) × 254.6(V) Depth(mm) 11.9 (Max.)
Outline Features : Form Style Flat Rectangle Display Outline Shape -
Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 1.04/1.10Kgs (Typ./Max.) Treatment Antiglare (Haze 13%), Hard coating (3H)

3,LG Display LC185EXN-SDA1 Optical Details

Basic Information : Luminance(cd/m²) 250 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Display Mode S-IPS, Normally Black, Transmissive
Best View on Symmetry Response(ms) 6 (Typ.)(G to G)
Color Performance : White Coordinate X:0.279; Y:0.292 Display Colors 16.7M (6-bit + Hi-FRC)
Color Gamut 68% NTSC (CIE1931) White Uniformity 1.30 (Max.)(5 points)

4,LG Display LC185EXN-SDA1 Electronics Details

Frame Rate : 60Hz
Reverse Scan : No
Panel Power Consumption : 17.9W (Typ.)

5,LG Display LC185EXN-SDA1 Interface Details

Signal Electrical : Voltage Supply 5.0V (Typ.) Current Supply 690/897mA (Typ./Max.)
Consumption 2.9/3.77W (Typ./Max.)
Signal Type : LVDS (1 ch, 8-bit) Signal Voltage -
Interface Features : Position LC185EXN-SDA1 LG Screen 18.5 Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
HRS KDF71G-30S-1H 1 pcs 30 pins 1.0 mm LVDS-30P1C8B-262A

6,LG Display LC185EXN-SDA1 Backlight Details

Backlight Features: Type WLED Shape - Position Edge light type
Quantity - Replacement - Life Time 50K(Typ.) (Hours)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST SM14B-SRSS-TB 1 pcs 14 pins 1.0 mm
Backlight Driver : Embedded (LED Driver)
Driver Electrical : Voltage Supply 24.0±1.2V Current Supply 0.625/0.66A (Typ./Max.)
Consumption 15.0/15.9W (Typ./Max.)

7,LG Display LC185EXN-SDA1 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box - 550×322×333 mm (L×W×H)

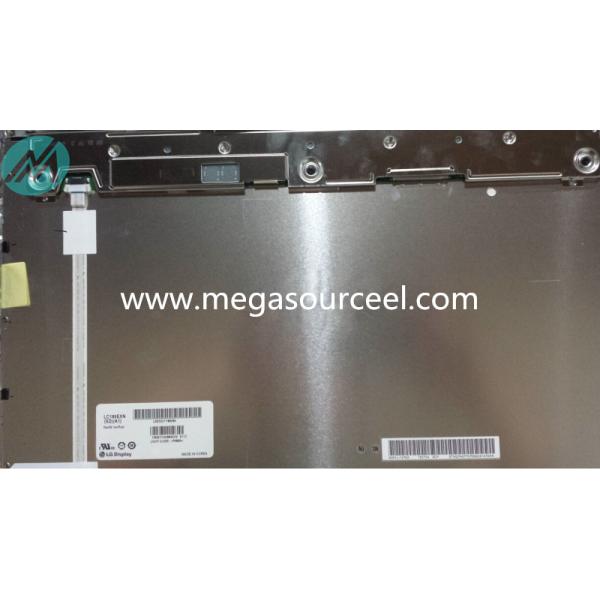

Detail picture for LC185EXN-SDA1 LG Screen 18.5" 1366x768 LC185EXN-SDA1 Display

LC185EXN-SDA1 LG Screen 18.5
