LG LB150X02-TL01 Screen 15.0 1024x768 LB150X02-TL01 Display
LG LB150X02-TL01 Screen 15.0 1024x768 LB150X02-TL01 Display
Specifications
Place of Origin :
MALAYSIA
Brand Name :
LG
Certification :
Lead free / RoHS Compliant
Model Number :
LB150X02-TL01
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
600
Panel Model :
LB150X02-TL01
Brand :
LG
Size :
15.0 inch
Resolution :
1024×768
Description

LG LB150X02-TL01 Screen 15.0" 1024x768 LB150X02-TL01 Display

1,LG. LCD LB150X02-TL01 Application Details

Basic Info : Panel Brand LG LB150X02-TL01 Screen 15.0 Panel Model LB150X02-TL01
Diagonal Size 15.0 inch Application
  • LG LB150X02-TL01 Screen 15.0
Panel Type a-Si TFT-LCD , LCM Model Alias LB150X02 (TL)(01)
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State LG LB150X02-TL01 Screen 15.0 Vibration Rating -
Specific Features :
  • LG LB150X02-TL01 Screen 15.0
  • LG LB150X02-TL01 Screen 15.0
  • LG LB150X02-TL01 Screen 15.0

2,LG. LCD LB150X02-TL01 Mechanical Details

Pixel Features : Pixel Format 1024(RGB)×768 (XGA) Dot Pitch 0.099×0.297 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V)
Mechanical Size : Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V)
Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 11.2 (Typ.) mm
Outline Features : Form Factor Flat Rectangle Display Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style -
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Other Features : Weight 1.00Kgs (Typ.) Surface Antiglare, Hard coating (3H)

3,LG. LCD LB150X02-TL01 Optical Details

Basic Information : Brightness 300 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 2/6 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity - Color Numbers 16.7M (6-bit + Hi-FRC)
Color Gamut 60% NTSC (CIE1931) Uniformity -

4,LG. LCD LB150X02-TL01 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : No
Power Consumption : 9.93W (Typ.)

5,LG. LCD LB150X02-TL01 Backlight Details

Back-light Features: Lamp Type CCFL Replacement - Life Time 50K(Min.) (Hours)
Amount 2 pcs Lamp Shape Straight Position Edge light type
Lamp Electrical : Voltage Input 580V (Typ.) Current Input 7.0mA (Typ.)
Consumption 8.12W (Typ.)
Interface Features : Type Connector Position - Lamp Driver No
Interface Detail Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL

6,LG. LCD LB150X02-TL01 Interface Details

Signal Systerm : LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 548mA (Typ.)
Consumption 1.81W (Typ.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
LS Mtron GT123-20P-H16-LSS 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-040A

7,LG. LCD LB150X02-TL01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
14 pcs / box - 370×320×413 mm

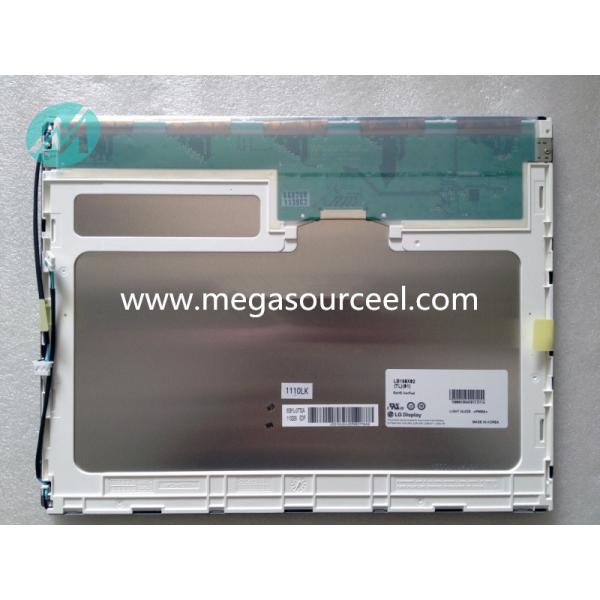

Detail picture for LG LB150X02-TL01 Screen 15.0" 1024x768 LB150X02-TL01 Display

LG LB150X02-TL01 Screen 15.0
