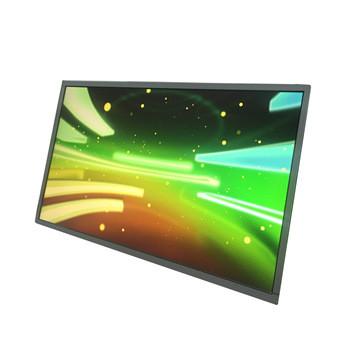

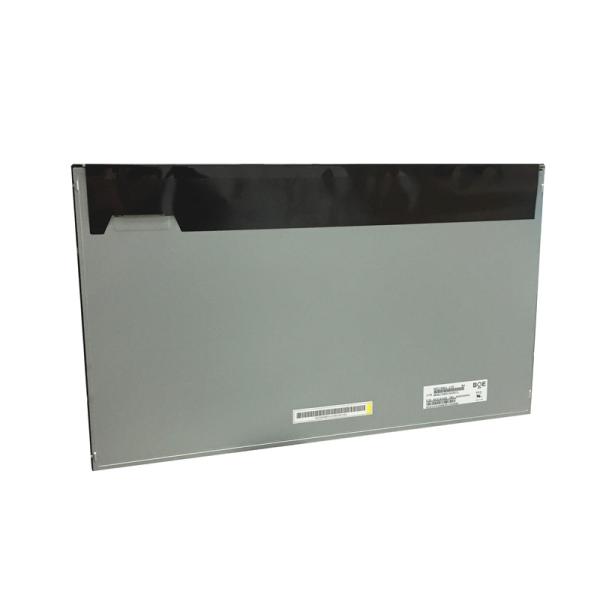

21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
Specifications
Place of Origin :
JAPAN
Brand Name :
Innolux
Certification :
Lead free / RoHS Compliant
Model Number :
M215HGE-L21
MOQ :
1pcs
Price :
Contact for Sample
Packaging Details :
Standard packaging
Delivery Time :
3-5 Working days
Payment Terms :
T/T in advance, Paypal, Western Union
Supply Ability :
5000
Model :
M215HGE-L21
Brand :
Innolux
Size :
21.5 inch
Resolution :
1920(RGB)×1080 , FHD
Screen Type :
LCM, a-Si TFT-LCD
Pixel Number :
1920(RGB)×1080 (FHD)
Arrangement :
RGB Vertical Stripe
Active Area(mm) :
476.64 × 268.11 (H×V)
Contrast Ratio :
1000 : 1 (Typ.) (TM)
Touchscreen :
Without
Signal Type :
LVDS (2 ch, 8-bit) , Connector 30 pins
Voltage Supply :
5.0V (Typ.)
Max. Ratings :
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Description

21.5 INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD Module

Specification for M215HGE-L21 21.5 INCH Innolux LCD DISPLAY

1,CHIMEI INNOLUX M215HGE-L21 Basic Information

Panel Brand : 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
Panel Model : M215HGE-L21
Panel Type : a-Si TFT-LCD , LCM
Application :
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
RoHS : 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
Specific Feature :
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
  • 21.5INCH Innolux LCD DISPLAY M215HGE-L21 TFT LCD 1920×1080
Remarks : Energy Star 7.0 Compliance

2,CHIMEI INNOLUX M215HGE-L21 Mechanical Features

Panel Size : 21.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 102 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.08275×0.24825 mm (H×V)
Pixel Pitch : 0.24825×0.24825 mm (H×V)
Weight : 1.91/2.10Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 476.64×268.11 mm (H×V)
Bezel Area : 479.8×271.3 mm (H×V)
Outline Dimension : 495.6×292.2 mm (H×V)
Outline Depth : 8.3/11.5 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on up, down bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

3,CHIMEI INNOLUX M215HGE-L21 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Min.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
Sunlight Readable : N

4,CHIMEI INNOLUX M215HGE-L21 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 18.29W (Max.)

5,CHIMEI INNOLUX M215HGE-L21 Backlight System

Lamp Position : Edge light type (Right side)
Lamp Type : WLED
Lamp Amount : 11S4P
Lamp Shape : 4 strings
Lamp Life Time : 40K(Min.) (Hours)
Lamp Voltage : 34.1±3.3V
Lamp Current : 65/69mA (Typ./Max.)
Lamps Power Consumption : 8.87/10.32W (Typ./Max.)
Interface Type : Connector
Interface Position : --

6,CHIMEI INNOLUX M215HGE-L21 Signal Interface

Signal Category : LVDS
Signal Class : LVDS (2 ch, 8-bit)
Input Voltage for Panel : 5.0V (Typ.)
Input Current for Panel : 1.17/1.45A (Typ./Max.)
Panel Power Consumption : 5.85/7.97 (Typ./Max.)
Interface Type : Connector

7,CHIMEI INNOLUX M215HGE-L21 Packing Form

Amount per Box : 13 pcs
Box Size : 567×301×376 mm (L×W×H)
Box Gross Weight : 27.525 Kgs

Pls pay attention to the following when your are purchasing:

1. We will offer pictures to our customers first and arrange shipment immediately after they make a confirmation. To protect your interest, please make sure to carefully review the pictures to ensure that model, suffix, packaging, appearance, etc. can meet your requirements before our sales team effect shipment. We don’t accept any return of goods due to the above reasons of uncertainty.


2. We have the most direct supply channels with manufacturers, supplier agents working closely so as to reduce product circulation. We are strict with quality, inspection and testing as they our essential work. At the same time,we also provide thoughtful, multi-faceted and comprehensive after-sales service.

★For any information, please contact with our sales…
