FUJITSU MAT3073NC 73.5G 10K RPM SCSI 3.5 inch 80 Pin server Hard Disk BD0728856A

MAT3073NC Hard Disk For Fujitsu Details

FUJITSU MAT3073NC POWER DEVICE

• Type : none

FUJITSU MAT3073NC INTERFACE PROVIDED

• Connector Type : 80 pin Centronics (SCA-2)
• Storage Interface : Ultra320 SCSI

FUJITSU MAT3073NC PERFORMANCE

• Internal Data Rate : 132 MBps
• Seek Time : 4.5 ms (average) / 10 ms (max)
• Drive Transfer Rate : 320 MBps (external)
• Average Latency : 2.99 ms
• Spindle Speed : 10000 rpm
• Track-to-Track Seek Time : 0.2 ms

FUJITSU MAT3073NC MISCELLANEOUS

• MTBF : 1200000 sec

FUJITSU MAT3073NC EXPANSION & CONNECTIVITY

• Interfaces : 1 x Ultra320 SCSI - 80 pin Centronics (SCA-2)
• Compatible Bays : 1 x internal - 3.5" x 1/3H

FUJITSU MAT3073NC HARD DRIVE

• Form Factor : 3.5" x 1/3H
• Spindle Speed : 10000 rpm
• Features : MEEPRML technology
• Hard Drive Type : internal hard drive
• Form Factor (Short) : 3.5"
• Form Factor (metric) : 8.9 cm x 1/3H
• Form Factor (Short) (metric) : 8.9 cm
• Storage Interface : Ultra320 SCSI
• Interface : Ultra320 SCSI
• Connector : 80 pin Centronics (SCA-2)
• SCSI Signaling Type : Low Voltage Differential (LVD)
• Average Seek Time : 4.5 ms
• Max Seek Time : 10 ms
• Track-to-Track Seek Time : 0.2 ms
• Average Latency : 2.99 ms
• Data Transfer Rate : 320 MBps
• Internal Data Rate : 132 MBps
• Buffer Size : 8 MB
• Non-Recoverable Errors : 10 per 10^15
• Seek Errors : 10 per 10^8

FUJITSU MAT3073NC ENVIRONMENTAL PARAMETERS

• Min Operating Temperature : 41 °F
• Max Operating Temperature : 131 °F
• Humidity Range Operating : 5 - 95%
• Sound Emission : 34 dB
• Sound Emission : 34 dB

FUJITSU MAT3073NC HEADER

• Brand : Fujitsu
• Product Line : Fujitsu Enterprise
• Model : MAT3073NC
• Compatibility : PC

FUJITSU MAT3073NC DIMENSIONS & WEIGHT

• Depth : 5.7 in
• Width : 4 in
• Height : 1 in
• Weight : 1.76 lbs

FUJITSU MAT3073NC BAY REQUIRED

• Type : internal
• Form Factor : 3.5" x 1/3H
• Form Factor (metric) : 8.9 cm x 1/3H

FUJITSU MAT3073NC RELIABILITY

• Seek Errors : 10 per 10^8
• Non-Recoverable Errors : 10 per 10^15
• MTBF : 1,200,000 hours

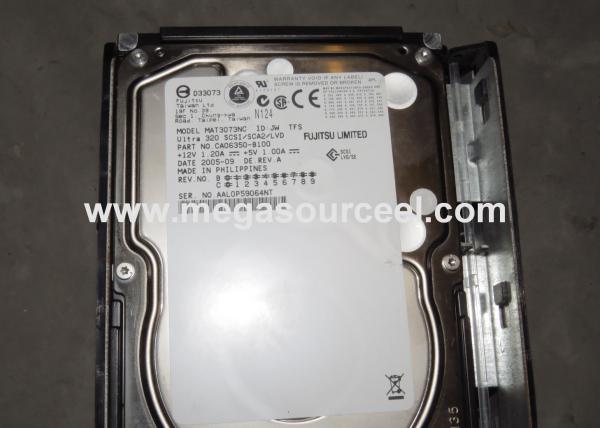

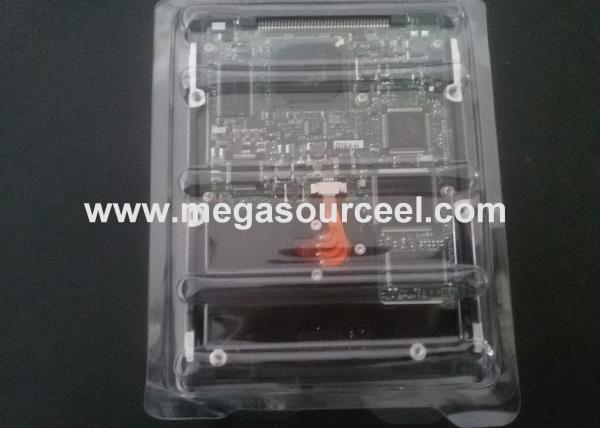

Detail picture for 3.5 inch 80 Pin server Hard Disk BD0728856A FUJITSU MAT3073NC 73.5G 10K RPM SCSI
