LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
Specifications
Brand Name :
PVI
Model Number :
PD064VT4(LF)
Place of Origin :
KOREA
MOQ :
1
Price :
Pls contact email：sales1@megasourceel.com
Payment Terms :
T/T, Western Union，PAYPAL,BANK TRANSFER
Supply Ability :
500
Delivery Time :
STOCK
Packaging Details :
STANDARD PACKING
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
6.4 inch
Resolution :
640(RGB)×480
Display Mode :
TN, Normally White, Transmissive
Active Area :
129.6×97.44 mm
Outline :
175.4×126.9mm
Surface :
Pls contact us for more details
Brightness :
400 cd/m² (Typ.)
Contrast Ratio :
400:1 (Typ.)
Display Colors :
262K(6 bit）
Response Time :
15/25(Typ.)(Tr/Td)
Viewing Angle :
55/55/40/55 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
2 pcs CCFL，Without Driver
Signal Interface :
TTL (1 ch, 6-bit) , 31 pins
Input Voltage :
5.0V (Typ.)(VCC)
Operating Temperature :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
ROHS :
Y
Description

Model Number: PD064VT4(LF)

Item Specifics for LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade

1,PVI PD064VT4 Mechanical Features

Panel Size : 6.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 125 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0675×0.2030 mm (H×V)
Pixel Pitch : 0.2025×0.2030 mm (H×V)
Weight : 340±10g
Surface : Antiglare
Active Area : 129.6×97.44 mm (H×V)
Bezel Area : 134.8×101.8 mm (H×V)
Outline Dimension : 175.4×126.9 mm (H×V)
Outline Depth : 12.5±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ2.2; 2-2.4×3.2)
Landscape or Portrait : Landscape type
Touch Panel : Without

2,PVI PD064VT4 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 55/55/40/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.294; Wy:0.308
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

3,PVI PD064VT4 Electronics Feature

Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 4.82W (Typ.)

4,PVI PD064VT4 Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 360±30V
Lamp Current : 3.0/6.0/7.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40KHz (Typ.)
Lamp Startup Voltage : 475/620V (Typ.)(Ta=+25/0℃)
Lamps Power Consumption : 4.32W (Typ.)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
JST BHR-03VS-1 4.0 mm 3 pins 2 pcs BLL-3PINS-HNL
Lamp Driver Board : No

5,PVI PD064VT4 Signal Interface

Signal Category : TTL
Signal Class : TTL (1 ch, 6-bit)
Input Voltage for Panel : 5.0V (Typ.)(VCC)
Input Current for Panel : 100/120mA (Typ./Max.)
Panel Power Consumption : 0.5/0.6W (Typ./Max.)
Voltage for Display Signals : VIL≤0.5V; 2.6V≤VIH
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
HRS DF9A-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010K

6,PVI PD064VT4 Packing Form

Amount per Box : 20 pcs
Box Size : 530×295×230 mm (L×W×H)
Box Gross Weight : 9.1 Kgs

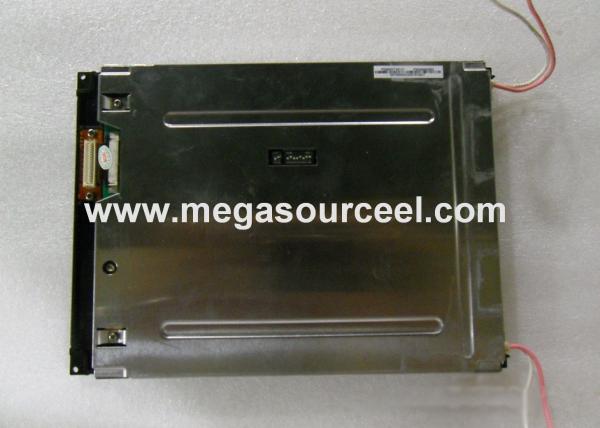

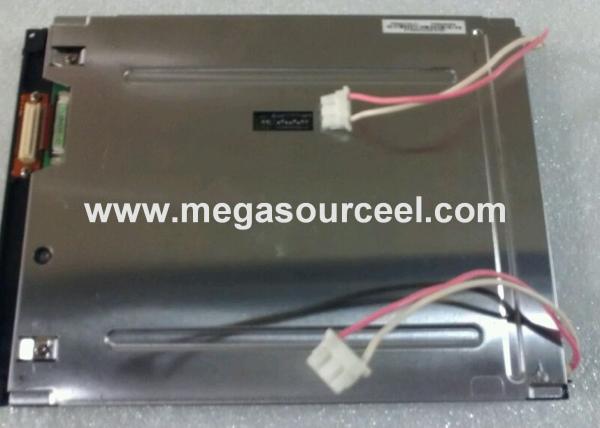

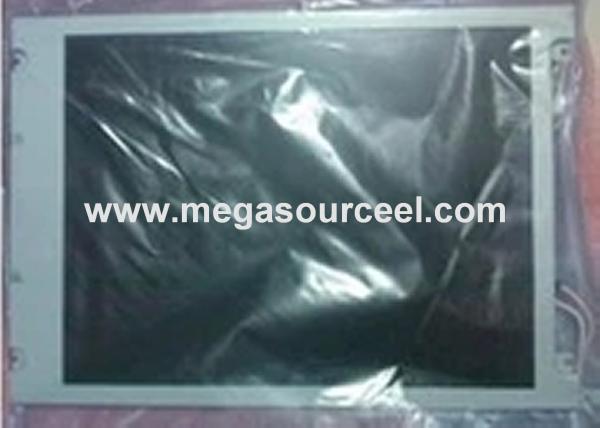

Details Picture for LCD display PVI PD064VT4(LF) 640(RGB)*480(VGA) 6.4 INCH New,A Grade
