Specifications
Brand Name :
Melin Sunergy
Model Number :
CB-400W
Place of Origin :
China
Certification :
CE ,FCC
MOQ :
10
Packaging Details :
1pc/box
Delivery Time :
10 days
Supply Ability :
5000pcs per month
Payment Terms :
T/T, Western Union, L/C
Folded Size :
1074X631mm
Open Size :
2370X1074mm
Output :
1.5m Cable With MC4 Or DC5521
Front Cover Material :
ETFE
Im :
10A
Working Voltage :
40V
Solar Cell :
Mono Crystalline
Solar Panel Number :
4X100W
Description

ETFE Waterproof Portable Solar Panels For RV 4X100W Folding Solar Energy Panels

Product Description:

The Folding Solar Panels 400w system is made with high-quality materials and advanced technology to ensure efficient and reliable performance. The front cover material is made of ETFE, which provides superior durability and protection against harsh weather conditions. The solar cells used in this product have an efficiency rating of 22%, which means they can convert more sunlight into usable energy than most other solar panels on the market.

The Portable Folding Solar Panels come with 4X100W solar panel modules, providing a total output of 400 watts. These folding solar panels 400w are designed to be lightweight and compact, making them easy to transport and set up wherever you need them. The panels feature a 1.5m cable with MC4 or DC5521 connectors, allowing you to easily connect to any compatible device.

One of the key advantages of the Portable Folding Solar Panels is their portability. These panels can be easily folded up and carried in a backpack, making them perfect for on-the-go use. They are also designed to be easy to set up and take down, so you can quickly get them up and running when you need them. With this product, you can have access to reliable and renewable energy wherever you go.

The Portable Folding Solar Panels are also incredibly versatile. They can be used to power a wide range of devices, from smartphones and tablets to laptops, cameras, and even small appliances. Whether you are camping in the wilderness or spending a day at the beach, these panels can provide the energy you need to stay connected and powered up.

In summary, the Portable Folding Solar Panels are the ultimate solution for anyone who needs reliable and portable power on the go. With a total output of 400 watts, a high-efficiency rating of 22%, and a durable ETFE front cover material, these folding solar panels 400w are the perfect choice for anyone who loves the great outdoors. So why wait? Get your Portable Folding Solar Panels today and start enjoying renewable energy wherever you go!

Features:

  • Product Name: Portable Folding Solar Panels
  • IP Rate: IP65
  • Im: 10A
  • Working Voltage: 40V
  • Weight: 16.6Kgs
  • Open Size: 2370X1074mm

Introducing our Portable Folding Solar Panels, the perfect solution for those looking for a portable solar panel 400w. With its IP65 rating, it's built to withstand tough outdoor conditions. It has a maximum current of 10A and working voltage of 40V, making it a powerful and efficient source of energy. This folding solar panel 400w weighs only 16.6Kgs and opens up to a size of 2370X1074mm, making it easy to transport and store.

Technical Parameters:

Model # CB-100W CB-120W CB-200W CB-300W CB-400W
Pmax 100W 120W 200W 300W 400W
Vmax 20V 20V 20V 36V 40V
Imax 5A 6A 10A 8.33A 10A
Voc 24V 24V 24V 43.2V 48V
Isc 5.25A 6.30A 10.5A 8.75A 10.5A
Solar Cell Type High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency 22%
Folded Size 615X560mm 494X480mm 635X564mm 812X608mm 1074X631mm
Open Size 1230X560mm 1848X480mm 2390X564mm 2430X812mm 2370X1074mm
Front Cover Material ETFE or PET Lamination
Solar Panel base board material PCB board
Output Port MC4 connect , DC5521 ,or USB Port Optional
Water Proof Rate IP65
Magnets Handle Included
Working Temperature -40 ~85℃
Power Co-Efficiency -0.35%/℃
Voltage Co-Efficiency -0.272%/℃
Current Co-Efficiency +0.044%/℃
Warranty / Life Time 3 Years /10 Years
STC 1000W/m² , 25℃ ,AM1.5
Weight 4.5Kgs 5.4Kgs 8.4Kgs 12.0Kgs 16.6Kgs

Applications:

The product's foldable design makes it easy to transport, store, and set up. Its open size measures 2370X1074mm, and it only weighs 16.6Kgs, making it lightweight and convenient to carry around. The packing box size is 1130*90*695mm, so it can fit in most car trunks or camping bags without any hassle.

The CB-400W has a solar cell efficiency of 22%, ensuring that it effectively captures sunlight and converts it into usable energy. This product is also CE and FCC certified, ensuring its quality and safety.

One of the best things about this portable solar panel is its versatility. It can be used for various occasions and scenarios, such as:

  • Camping trips - keep your devices charged while enjoying the great outdoors.

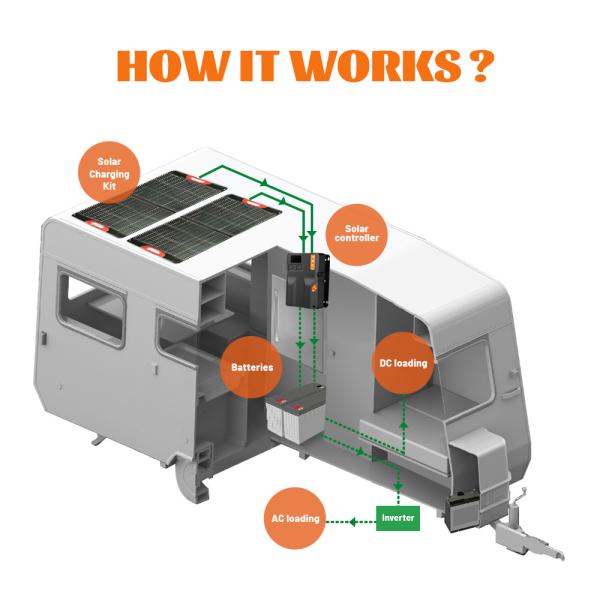

  • RV travel - power up your RV's appliances without relying on a power hookup.
  • Emergency situations - ensure that you have a reliable source of power during blackouts or natural disasters.
  • Off-grid living - use the CB-400W to power up your home or cabin without relying on conventional power sources.
  • Boating trips - keep your boat's battery charged while enjoying a day out on the water.

The CB-400W has a minimum order quantity of 10, and it comes in a single box packaging. The product has a delivery time of 10 days, with a supply ability of 5000pcs per month. With a 3-year warranty, you can be sure that this portable solar panel will last you for years to come.

Invest in Melin Sunergy's portable solar panel foldable 400w and have a reliable source of power wherever you go!
