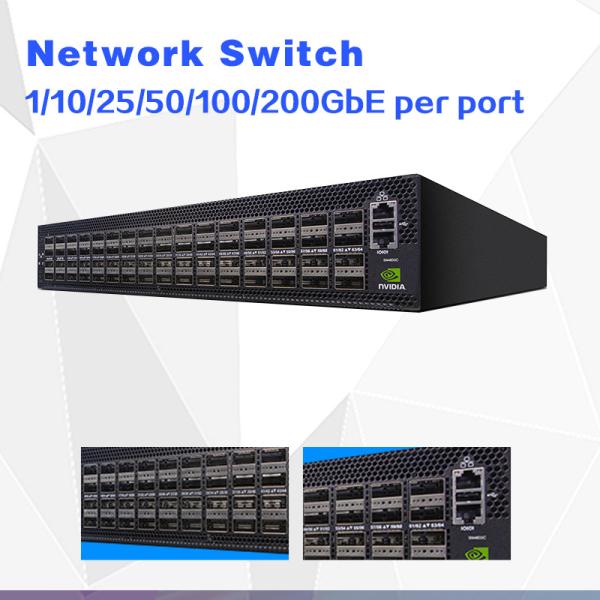

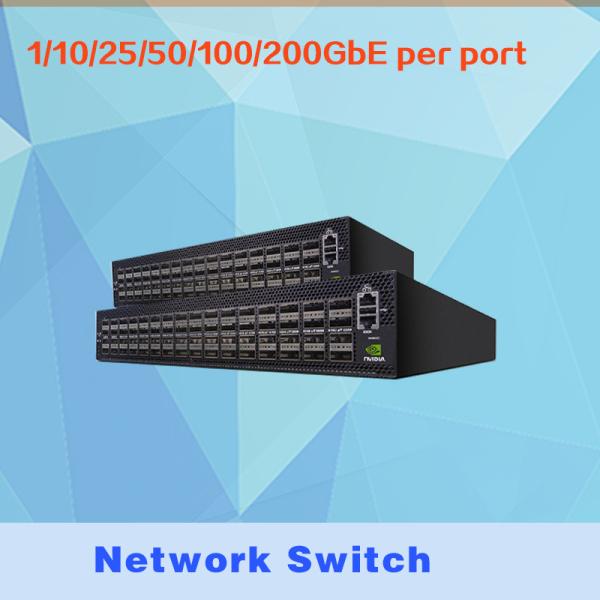

100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux
Specifications
Brand Name :
Mellanox
Model Number :
MSN4600-CS2FC
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
XT , T/T,Western Union, MoneyGram
Supply Ability :
1000sets/month
Delivery Time :
7-10 working days
Packaging Details :
carton
Ports :
64 QSFP28
Transmission Rate :
1/10/25/40/50/100GbE per port
Function :
LACP, Stackable, VLAN Support
Communication Mode :
Full-Duplex & Half-Duplex
Switch Capacity :
25.6Tb/s
Technology :
Ethernet
Performance :
1/10/25/40/50/100GbE per port
System weight :
14.64kg
System dimensions :
88mm (H) x 428mm (W) x 566.4mm (D)
Rack mount :
1U rack mount
Description

MSN4600-CS2FC Spectrum-3 Based 100GbE 2U Open Ethernet Switch with Cumulus Linux 64 QSFP28 Ports 2 Power Supplies (AC) x86 CPU Standard Depth P2C Airflow Rail Kit

SN4600C Series Switches

The SN4600C is a 64-port 100GbE network switch system that is ideal for spine/super-spine applications. With a landmark 8.4Bpps processing capacity and 12.8Tb/s throughput in a dense 2U form factor, SN4600C offers diverse connectivity in combinations of 10/25/40/50/100 GbE. The SN4600C is well-suited to answer the challenging needs of large virtualized data centers and cloud environments.

Visibility

  • NVIDIA What Just Happened (WJH) telemetry dramatically reduces mean time to issue resolution by providing answers to: When, What, Who, Where and Why
  • Hardware-accelerated histograms track and summarize queue depths at submicrosecond granularity
  • Inband Network Telemetry (INT)-ready hardware
  • Streaming Telemetry
  • 512K on-chip flow counters

Performance

  • Fully shared packet buffer provides a fair, predictable and high bandwidth data path
  • Consistent and low cut-through latency
  • Intelligent hardware-accelerated data movement, congestion management & load balancing for RoCE & Machine learning applications that leverage NVIDIA GPUDirect
  • Best-in-class VXLAN scale-10X more tunnels and tunnel endpoints
  • 512K shared forwarding entries flexibly shared across ACL, LPM routes, host routes, MAC, ECMP and tunnel applications
  • Up to 1M IPv4 route entries

Agility

  • Comprehensive Layer-2, Layer-3 and RoCE
  • Advanced network virtualization with high performance single pass VXLAN routing and IPv6 segment routing
  • Cloud Scale NAT - 100K+ sessions
  • Programmable pipeline that can programmatically parse, process and edit packets
  • Deep Packet Inspection - 512B deep
Packet buffer architecture has a major impact on overall switch performance. The Spectrum-3 packet buffer is monolithic and fully shared across all ports, supporting cut-through line rate traffic from all ports, without compromising scale or features. With its fast packet buffer, Spectrum-3 is able to provide a high-performance fair and bottleneck-free data path for mission-critical applications.
Feature Value
Mechanical


 Size: 3.46’’ x 16.85’’ x 22.3’’
88mm (H) x 428mm (W) x 566.4mm (D)
Mounting: 19” rack mount
Weight: 14.64kg
Speed: SN4600 - 1/10/25/50/100/200GbE per port

SN4600C - 1/10/25/40/50/100GbE per port
Connector cage: 64 QSFP28
Environmental

 Temperature: Operational: 0° to 40°C
Non-Operational: -40° to 70°C
Humidity: Operational: 10% - 85% non-condensing
Non-Operational: 10% - 90% non-condensing
Altitude: 3050m
Noise level: 67.6dBA
Regulatory Safety/ EMC: CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC
RoHS: RoHS compliant
Power Input Voltage:

SN4600:
1x/2x, 15A/100 Vac, 15A/110Vac, 12A/120Vac, 10A/200-240Vac,
50/60Hz

SN4600C:
1x/2x, 10A/100-127Vac, 50/60Hz, 6A/200-240Vac,
50/60Hz
Global Power Consumption:

SN4600:
Typical power with passive cables (ATIS): 600W

SN4600C:
Typical power with passive cables (ATIS): 466W
Main Devices

 CPU: Intel x86 2.20GHz Quad Core
PCIe: 4x Gen 3.0
Switch: NVIDIA Spectrum®-3
Memory: SN4600 - 16GB RAM, 60GB SSD
SN4600C - 8GB RAM, 30GB SSD
Throughput SN4600 - 25.6Tb/s
SN4600C - 12.8Tb/s

100GbE 2U Open Mellanox Network Switch MSN4600-CS2FC With Cumulus Linux

FAQ

Q1.What can you buy from us?

A:Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, Access Point, etc.

Q2.How about the delivery date?

A:It usually takes 3-5 working days. For specific models, please contact us to check the stock. In the end, the actual

consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

A: We supply 12 months warranty time.

Q4.How about the Shipping Method?

A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do

any shipments that you wanted.

Q5.Can I get some samples?

A:Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

A:First-hand supply, Original and new products with the favorable price and perfect after-sales service.
