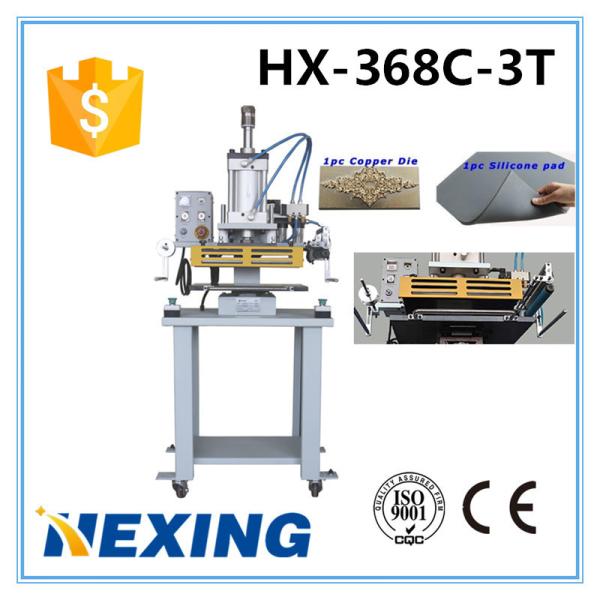

HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
HX-368C/D-3T Pneumatic hot stamping , embossing ,creasing, adjustable Stamping pressure, temperature and speed
Specifications
Brand Name :
Hexing
Model Number :
HX-368C/D-3T
Certification :
CE, ISO9001
Place of Origin :
Yantai
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000 sets per week
Delivery Time :
2-15 workdays
Packaging Details :
Fumigation-free wooden cases
Description

Feature

1.High pressure, easy operate, working stable.

2.Stamping pressure, temperature and speed are adjustable.

3.Automatic constant temperature, counting, stroke self-setting function.
4.Widespread use to hot stamping decorative, designs, patterns, chara and combined trademarks.
5.The function of the machine: hot stamping, embossing, creasing.
6.Feeding and collecting the foils automatically and adjustable.

Basic Information

Model HX-368C-3T HX-368D-3T
Max. Pressure 3 Ton 3 Ton
Max. Stamping Size 310 x 210 mm 450 x 290 mm
Worktable Area 360 x 310 mm 510 x 340 mm
Max. Working Height 80 mm 80 mm
Temperature 0 ~ 300 ℃ 0 ~ 300 ℃
Air Supply 0.8 ~ 1.2 mpa 0.8 ~ 1.2 mpa
Total Power 1 kw 3 kw
Weight 300 kgs 320 kgs
Dimension 690 x 600 x 1680 mm 690 x 670 x 1680 mm

Works show
