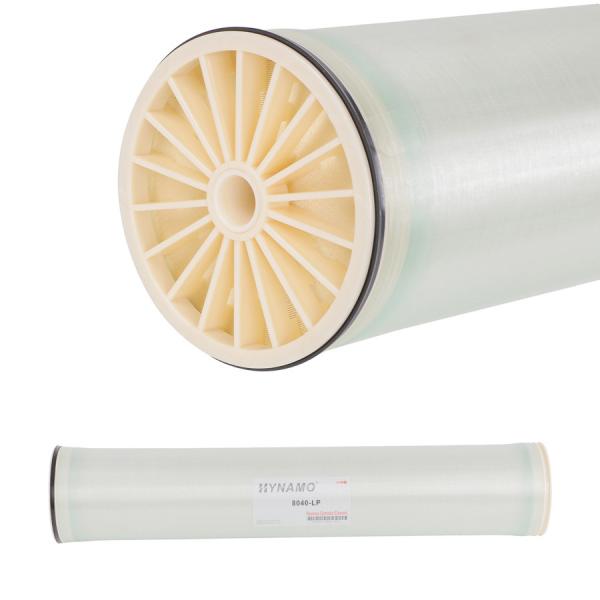

Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water
Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water
Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water
Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water
Specifications
Brand Name :
HYNAMO/OEM
Model Number :
BW-8040-LP
Certification :
CE, RoHS, ISO9001, NSF
Place of Origin :
Hangzhou city,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 PCS /Month
Delivery Time :
depend on quantity
Packaging Details :
109.00cm*23.00cm*23.00cm
Membrane Material :
Polyamide
Salt Rejection Rate :
99.5%
Capacity :
39.7m³/d
Recovery Rate :
15%
Operation Pressure :
225psi
Max. operation temperature :
45℃
Warranty :
3 Years
Packing :
1PCS/Carton
Description

High TDS 8040-Low Pressure RO Membrane for Industrial Brackish Water RO System

In the membrane separation process, the solvent (water) in the water permeates the membrane under pressure, and the solute (ion or solute and particulate matter of different molecular weight) is retained, so that the concentration of the solute at the membrane surface is gradually higher than that of the solute at the main body of the aqueous solution. Under the action of the concentration gradient, the solute diffuses from the membrane to the bulk solution, thereby forming a boundary layer, which increases the fluid resistance and local osmotic pressure, resulting in a decrease in membrane flux. When the solvent flows to the membrane surface, the speed of the solute flowing to the membrane surface and the concentration gradient balance the diffusion speed of the solute to the bulk solution, and a stable boundary layer corresponding to the concentration difference is formed on the membrane surface, which becomes the concentration polarization boundary layer, this phenomenon is called concentration polarization.

The product specification

Model Number Description 8040-LP
Performance &
Test Condition		 The Desalination Rate % 99.5%
Average Permeat Fow GDP 10500
Test pressure 225psi
Test solution Temperature 25± 1ºC
Test Solution Concentration NaCl 2.0-11.0
Recovery Of Single-Branch Membrane Element 15%
Feed water SDI 5
  • When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
  • Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.

Operating Limit:

Maximum Operating Temperature 113ºF(45ºC)
Maximum Working Pressure 600psi(41.0 bar)
The high pressure drop 15psi (1.0bar)
Continuously operating PH range a 3-10
Short wash PH range (30min) b 2-12
Maximum feed water SDI SDI 5
Tolerance Of Free Chlorine <0.1ppm
Maximum pressure drop for single membrane element 15psi(0.1Mpa)

Dimension of Membrane Element

Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water

PROCEDURES

Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water

Polyamide High Tds After Ro Membrane 8040 Manufacturer Low Pressure Brackish Water

FAQ:

1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.

3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.

4.RO membrene desalination rate and service life ?
A: RO meembran desalination rate more 98%,service life according to water quality 2-3years


5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.


6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
