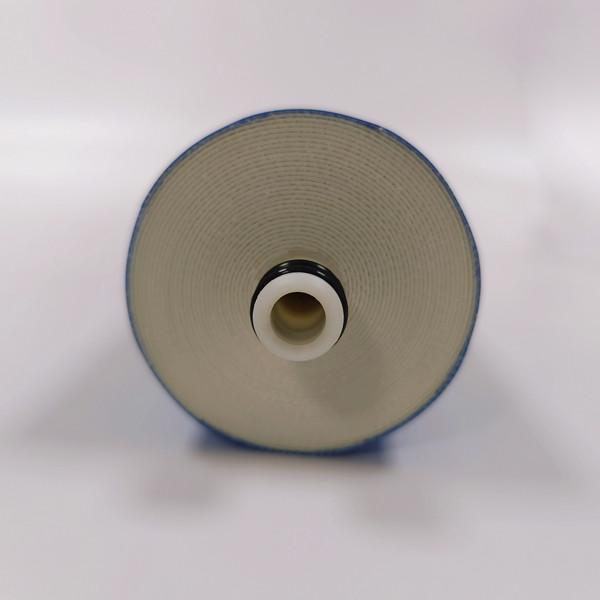

13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane
Specifications
Brand Name :
Hynamo/OEM/ODM
Model Number :
3313-1000
Certification :
CE, RoHS, ISO9001, NSF
Place of Origin :
Hangzhou city, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 PCS /Month
Delivery Time :
depend on quantity
Packaging Details :
35.00cm*35.00cm*37.00cm
Type :
reverse osmosis membrane
Model NO. :
3013-1000
Salt Rejection Rate :
95%
Capacity :
1000GPD
Warranty :
2 years
Weight :
0.62KG
Working up :
1500TDS
Recovery :
50%
Function :
Water Purification Plant
Applicable Industries :
Hotels, Garment Shops, Manufacturing Plant, Food & Beve
Description

Hynamo Commercial High Flow 1000GPD Reverse Osmosis RO Membrane

Biological membranes include cell membranes (outer coverings of cells or organelles that allow passage of certain constituents); nuclear membranes, which cover a cell nucleus; and tissue membranes, such as mucosae and serosae.

Membranes are used in water treatment to separate contaminants from water based on properties such as size or charge. Common membrane processes include microfiltration, ultrafiltration, nanofiltration, reverse osmosis, and electrodialysis.

RO system membrane is made of the sedi-permeable membrane with the 0.1mm filtration precision for separating and removing the dissolved solids, organics, bacteria etc. According to the water output capacity, the different large flow membrane is available as follows: 300G, 400G,500G,600G,700G,800G,1000G.

Performance and test conditions

model Stable rejection rate(%) average permeate flowGPD(m3/d) test condition
operation pressure psi(Mpa) test liquid NaCl(ppm) recovery rate (%)
3012-300 97 300(1.14) 90(0.61) 500 50
3013-400 95 400(1.52) 90(0.61) 500 50
3013-600 95 600(2.28) 100(0.7) 500 50
3013-800 95 800(3.04) 100(0.7) 500 50
3013-1000 95 1000(3.79) 100(0.7) 500 50

Note: Single membrane permeate flow change in the range of ±15%

Test Conditions

Test Pressure 100psi( 0.7Mpa)

Temperature 25ºC

Concentration of Testing Solution (NaCl) 500ppm

Testing Solution PH 2-11

13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane

Note:

1. The Max. continous operation temperature is 35ºC when PH rate over 10.

2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.

Dimension of Membrane Element

13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane

3013-1000: A:13.0inch B:3.0inch C:0.68inch D:0.75inch E:11.5inch

High-flow, high-rejection, low-energy reverse osmosis (RO) membrane elements are making desalination a more economical choice than ever before by reducing the cost of produ-cing potable water by up to 20%.

13 inch High Flow Membrane Ro 1000 Gpd Reverse Osmosis Membrane

FAQ:


Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.

Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.

Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.

Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.

Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
