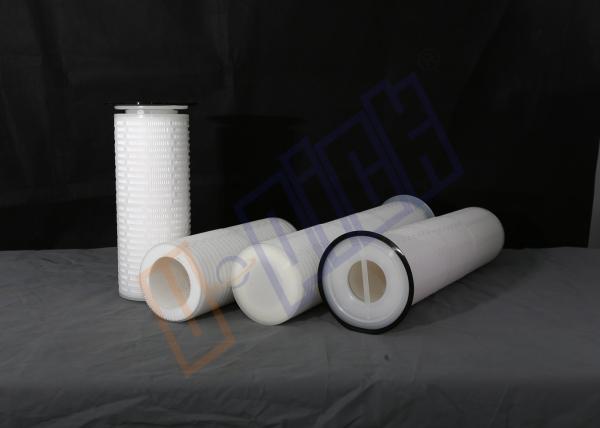

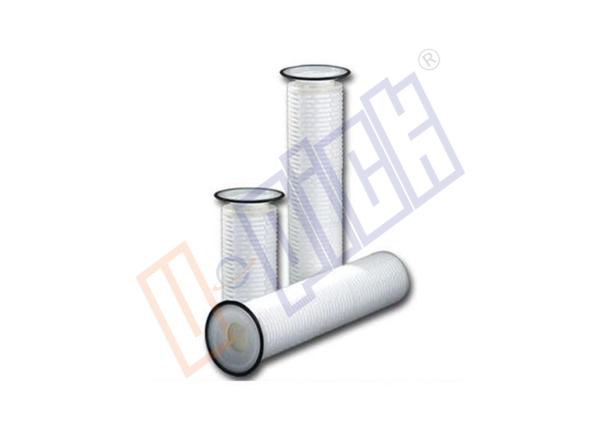

High Capacity 0.20 Micron PP Melt Blown Filter Cartridge With Plastic Sealed Bags
High Capacity 0.20 Micron PP Melt Blown Filter Cartridge With Plastic Sealed Bags
High Capacity 0.20 Micron PP Melt Blown Filter Cartridge With Plastic Sealed Bags
High Capacity 0.20 Micron PP Melt Blown Filter Cartridge With Plastic Sealed Bags
Specifications
Brand Name :
Upick
Model Number :
U-DLL001
Certification :
FDA
Place of Origin :
China
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
LC TT PAYPAL
Supply Ability :
120000 PCS per Month
Delivery Time :
15-20 Workdays
Packaging Details :
Inner box & Carton
Item Name :
Bag high flow filter cartridge
Material :
polypropylene
Pore Size :
1 micron
Length :
20-40 inch
Packing :
plastic bag
Others :
Super high dirt capacity
Description

0.20 micron bag type 20 inch PP high flow filter cartridge for water treatment​

Description

UPK WH Series elements are high flow capacity, Efficiency, inside to outside flow, liquid filtration pleated bag replacement cartridges design for applications with Large flow requirements. By increasing the surface area in Original baskets and incorporating multiple layers of media. Our unique pleated bag design provides for longer service Life and super high contamination holding capacity compare To a standard bag design.

UPK WH Series is a pleated style tech supported with robust end caps, the filtering media is then attached to the end caps and core via thermal bond to prevent and possibility of by-pass at media sealing points.

Specification

Outside Diameter 6.0 inch(152mm)
Length 1# / 16 inch(405mm) | 2# / 31inch(785mm)
Filter media PP
Support/Drainage Polypropylene (PP)
Seal Material EPDM, FEP encapsulated Viton
Removal Rating 0.5μm,1μm,3μm,5μm,10μm,20μm,50μm,70μm
Maximum Operating Temperature 80°C
Maximum Differential Pressure 3.4Bar@80°C
Recommended Differential Pressure 2.4Bar at 20°C
Suggested maximum Flow of water

800LPM

Application

RO Pre-filtration / UF membrane pre filtration / Petrochemicals

Fine chemicals / Food and beverage / Beer and wine

Benefits and Features

High surface area, high flow capacity

Shorter in down time easy to change out

Sized to fit most size #1 and #2 bag housing with no hardware changes

Coreless construction minimizes disposal cost

High dirt holding capacity for long service time and low filtration cost.

Absolute pleated bag filter are free of surfactants resins, binder and adhesive

Save up to 60% change out time

Ordering Information

UPK-BC101P5EU = Size 1 filter bag replacement, PP material, 0.5 micron, EPDM sealing ring, suitable for upper inlet and down outlet style filter housing.
