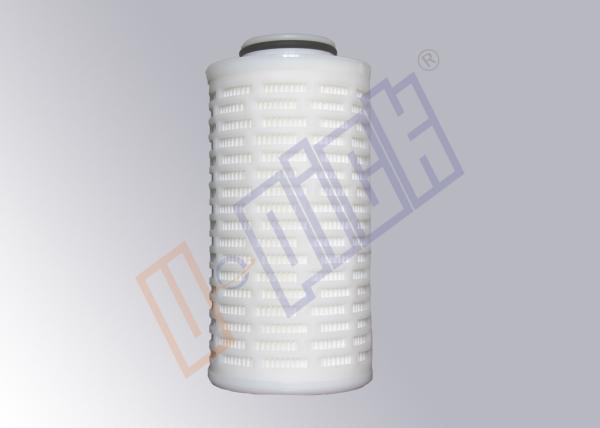

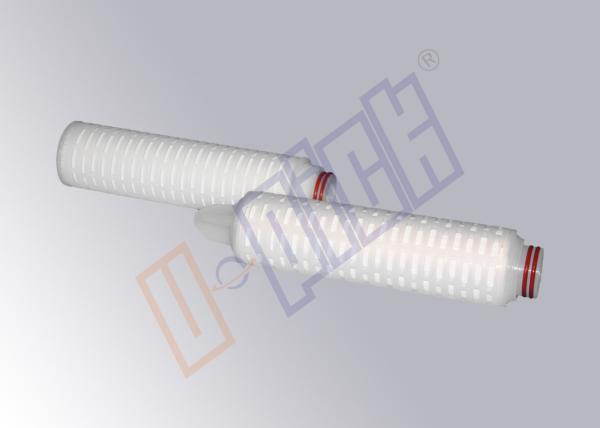

0.2 micron PES membrane pleated filter cartridge for pharmacy industry

Description

TZJF series PES Membrane Filter Cartridge are manufactured for the specific needs of the electronics and high purity chemical industries. Materials of construction are chosen for the compatibility with chemicals and solvents used in electronics manufacturing. The cartridges produce minimal extractable when exposed to typical process chemicals and solvents. Each cartridge module is pulse power flushed until the rinse effluent reaches 18+ Megohm-cm and less than 3ppb TOC. It is also individually tested to ensure it is integral. The cartridges shall be used when high performance filtration is essential.

Constructional Materials

Dimensions

Service Condions

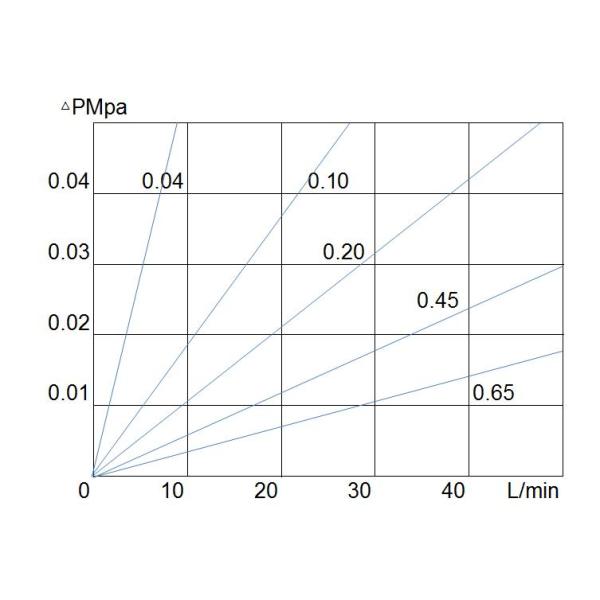

Flow Rate / 10" Element with Water at 68 °F (20 °C)

Educt

Endotoxin < 0.25EU/ML

Extractive < 0.03g/10 inch filter cartridge

Applications

Min. Bubble Point (10inch, 60% isopropyl alcohol wetted, 25℃)

Diffusion Flow (0.27Mpa)

The Values here are approximation due to differences in pressure drop encountered in housings and pipe systems

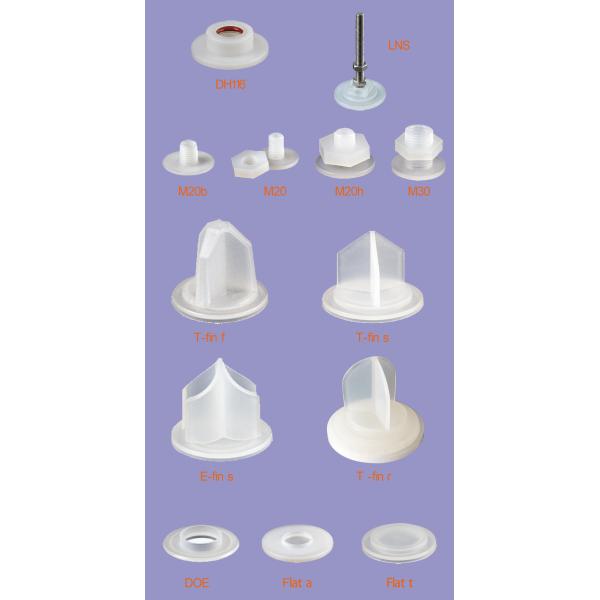

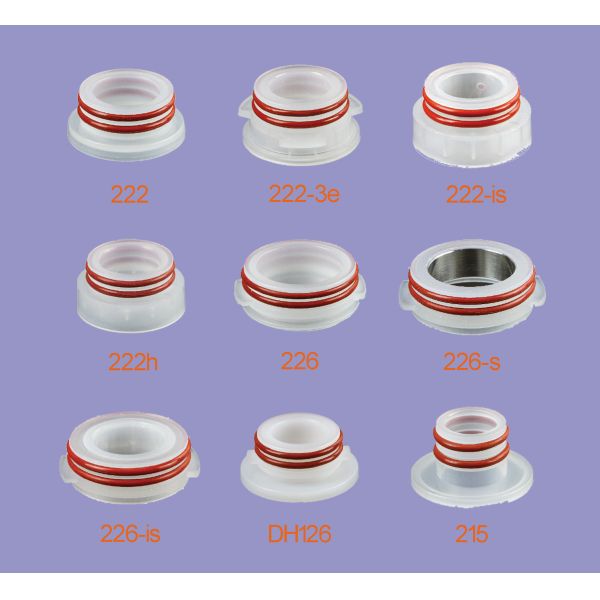

End Caps

Quality Assurance & Standards

Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.

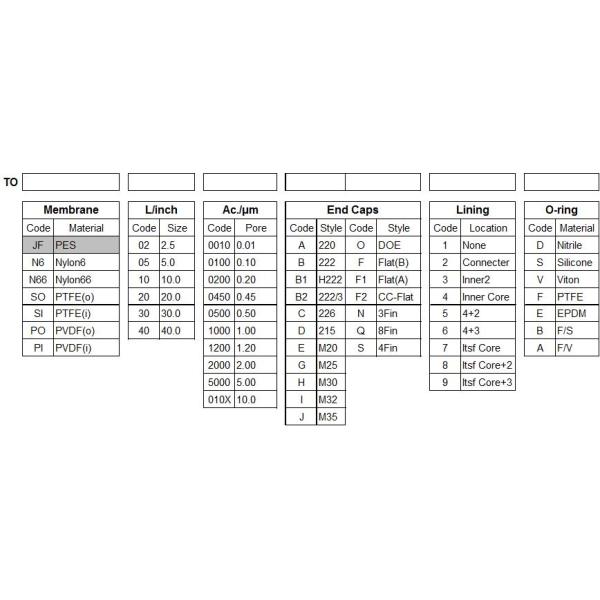

Ordering Information

Cartridge order numbers have several variables from pore size to end cap type.

For instant, PES Membrane, 20 inch length, 0.20 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.

Product Code =TZJF200200CN1S
