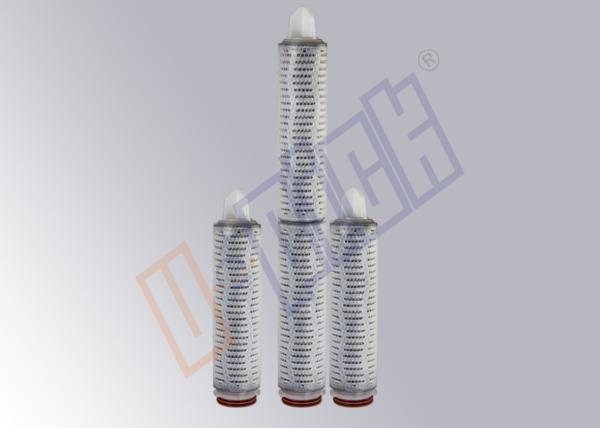

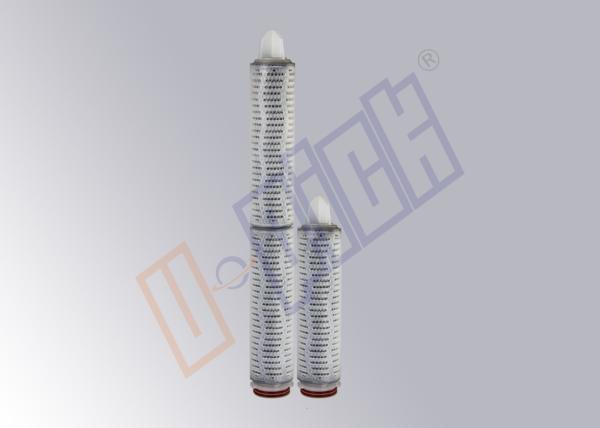

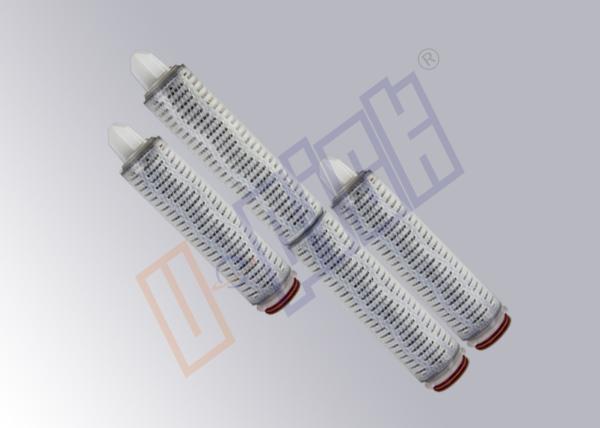

Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
Specifications
Brand Name :
UPK
Model Number :
10"
Certification :
NSF
Place of Origin :
CHINA
MOQ :
50PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, PAYPAL
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
20-30DAYS
Packaging Details :
1 PC PER INNER BOX, 20 PCS PER CARTON
Pore Size :
5 micron
O-ring :
Silicone
Length :
5" 10" 20" 30" 40"
Diameter :
ID 28/30 OD 58/64/68/115
Filtration Area :
>=0.5 sq.m
Others :
stainless steel inner core is available
Description

de - color and odor removing super fine fiber activated filter cartridge

Constructional Material

Filtering Media activated carbon filter cartridge
Media Support Polypropylene
End Caps Polypropylene
Center Core PP or PP with SS
Support Cage PP or PE net
O-Ring Silicone, EPDM, Viton, FPM, Nitrile, etc.

Service condition

PH Value 1~14
Working Temp. <=50℃
Max. Temp. 65℃, △P<=0.1Mpa
Max. Differential 25℃, 0.42/0.21Mpa
ISV 800-1400
M.B 100-300mg/g

Application

  • Residual Chlorine
  • Odour Removal
  • Inks and Oil
  • Chemical
  • Food Decoloration
  • Metal Ions

Activated Carbon Filter Cartridge​ Features And Benefits

  • High absorption of chlorine, Pigment;
  • 100% integrity test;
  • Wide chemical compatibility;
  • Big flow throughput;
  • Deep filtration;
  • Without using any binder;
  • Good thermal stability.

Flow Rate (10" Element with Pure Water at 68 °F (20 °C)

Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter

Quality Assurance & Standards

Our goal is to ensure our customers the greatest possible value for their filtration cost. Our state of the art manufacturing facility and quality management system both meet ISO 9001:2008 standards. Each operation from assembly and test to cleaning, drying, and packaging is completed in appropriately rated clean rooms. A sophisticated MRP & ERP system collects and processes real time data from manufacturing centers and inspection points. This allows variable and attribute data to be quickly and easily analyzed driving constant improvements in both quality and cost.

Ordering Information

Cartridge order numbers have several variables from pore size to end cap type.

For instant, ACF Fiber, 20 inch length, 0.45 micron rating, 226 w/fin end cap, without lining, Silicone O-rings.

Product Code =UPKC200450CN1S

Color / Odor Removal Charcoal Water Filter Cartridge Paper 5 Micron PP Membrane Filter
