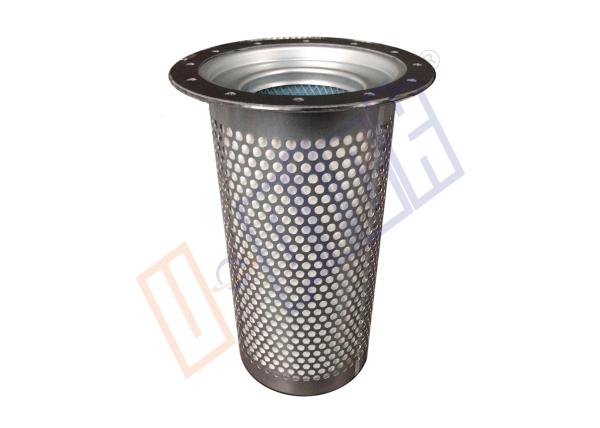

HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
HV Glassfiber Oil Separator Filter For Kasear OEM Available 3 Micron Diameter
Specifications
Brand Name :
Kasear
Model Number :
General models
Certification :
ISO
Place of Origin :
Zhejiang China
MOQ :
10 EA
Price :
Negotiation
Supply Ability :
350000 EA Per Month
Delivery Time :
10 workdays
Packaging Details :
Plastic bag & inner box and outer box
Item Name :
Oil and gas seperator
Material :
HV ultrafine glass fiber
Application :
Kasear compressor
Warrangty :
4000-7500hours
Filtering Rate :
0.01-0.2 micron
Others :
OEM No. found as below
Description

HV glassfiber OEM air oil seperator matches to all Kasear air compressor

Description

The function of the oil air seperator is to separate the oil mist particles from the oil-gas mixture so that the Oil-Air-Sperating can be realized with 3 steps:
1. Oil droplet seperation: the quantity and diameter of glass filber, and oil air flow speed are the decisive factors which determining the seperation effectiveness. (Diameter of HV fiber is 3 micron)
2. Tiny oil droplets seperation: fine oil droplets polymerize into big droplets during the first seperation stage, passing through the glassfiber layer and flow into the bottom. oil droplets residual in the air continue to seperate at the second seperation stage.
3. Returning oil collection: according to the design principle of oil air seperator core, oil air mixture if from outside to inside. a return pipe located at the center of the oil seperator core slightly away from the bottom is used in the screw crompressor oil air seperator to extract oil from the bottom of the oil air seperator core.

Ordering Information

No. OEM No. Compressor Model
01 6.1961.0 ES250
02 6.2013.0 CS121
03 6.2014.0 DS141
04 6.2015.0 ES250, ES300
05 6.2018.0 SX 6
06 6.2019.0 or 6.3512.0 ESD300
07 6.2134.0 　
08 6.3511.0 　
09 6.3569.0 BSD 62/72/81
10 6.3571.0 CSD 82/102/122
11 6.3623.0 CSDX 137/162, DS141
12 6.3669.0 ASD 32/37/47/57
13 6.3789.0 ASK 27/32/35
14 6.3792.1 SK 21/24, SK 22/25
15 6.3795.0 SM 9/12/15
16 6.4273.0 DSDX 243/302
17 NO.YF-44324040 　
