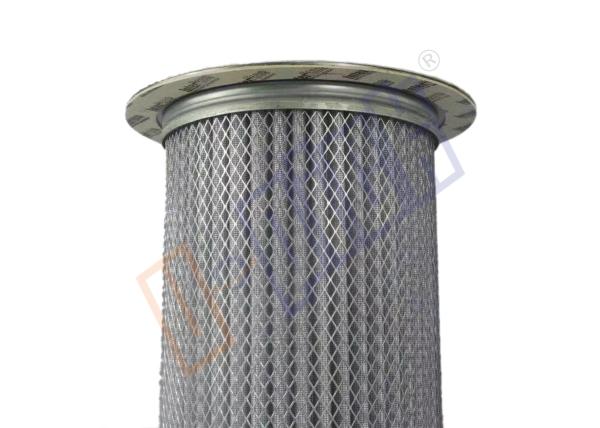

Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
Specifications
Brand Name :
Sullair
Model Number :
UPK003
Certification :
ISO
Place of Origin :
Zhejiang China
MOQ :
10 EA
Price :
Negotiation
Supply Ability :
30000EA Per Month
Delivery Time :
5-7 workdays
Packaging Details :
Plastic bag & inner box and outer box
Item Name :
Sullair oil/air seperator
Material :
HV Glass fiber
Application :
Air compressor oil/gas seperation
Warrangty :
4000-6500hours
Filtering Rate :
0.01-0.2 micron
Others :
OEM No. found as below
Description

HV filter paper air oil seperator for most Sullair air compressor models

Description

The compressed air from compressing head carries big and small droplets, big one are easy to separate while passing through air oil speperator tank, while small droplets (suspended oil particles <=1 micorn diameter) must be held up glass fiber filtering media with micrometer level filtering rating installed in an air oil seperator. Oil particles are directly intercepted by filtering media and coagulated by inertial collision. The suspended oil particles in compressed air quickly coagulate into big ones. Under gravity, oil is concentrated at the bottom of the oil core and returns to the engien head lubrication system through the inlet of the oil return pipe at the bottom concave location, thus making the compressor more effectively discharge cleaner and oil-free crompressed air.

Ordering Information

No. OEM No. Compressor Model
01 02250048-713 Vacuum pump
02 02250048-734/02250047-808 LS20-125, LS20-150, AS11010 AC, AS110-100007
03 02250061-137/02250060-462 LS16-75, LS16-100, LS16-75L, LS20-100, WS 5508 AC
04 02250061-138/02250060-463 LS16-75, LS16-100, LS16-75L
05 02250100-755/753 LS12-50, LS16-60, LS16-75, WS3700
06 02250100-756/754 LS12-50, LS16-60, LS16-75, WS3700
07 02250109-319/02250109-318 TS32S-400L, TS32S-450H, LS32-450HWC
08 02250109-321/02250109-320 TS32S-450H, LS32-450HWC,
09 02250121-500 LS-10-25~30, LS10-40
10 02250137-895 AS1800-2200
11 250028-244 Moving Machine 1070
12 250034-085 LS20-125, LS20-150, AS11010 AC , AS110-100007
13 250034-086 Moving Machine 750~1000, EPQ1000IEC E-moving Machine, DPQ825XH
14 250034-112 monopole LS10-25/30
15 250034-114 LS10-40 (old)
16 250034-116/408167-005 Pri. LS16-60, 75, 100
17 250034-122/121 LS20S-175, LS20S-200
18 250034-124/123 LS25S-250, LS25S-300, LS25S-350
19 250034-128 LS25-250/300
20 250034-130/129 LS25S-250, LS25S-300, LS25S-350
21 250034-134/133 LS20S-175, LS20S-200
22 250042-862/408167-011 Sec. LS16-60/75/100
23 88290001-940 　
24 88290015-567 50HP, WS 11KW
25 88290019-362 550, DPQ550RH
26 88291009-141 AS90-110
27 JCQ71EJC001(63725) Oil fume seperator
28 JCQ81EJC002 Oil fume seperator
29 PSG 850/1 Oil fume seperator

Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003Sullair Air Compressor Oil Separator Filter With Long Life Span UPK003
