Luer taper from 1 to 15 micron UV ink disc filter for various printers

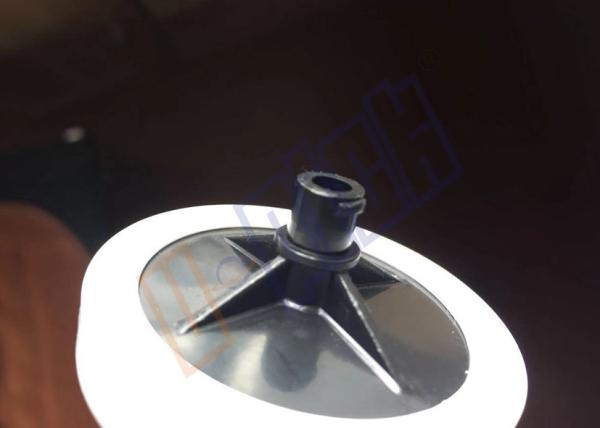

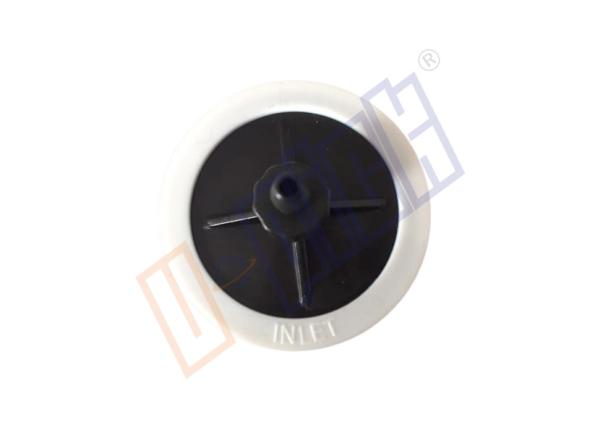

UV Ink Guard——Disc Filter

How to assure the quality of UV ink? Ensure patterns and color clear and natural in printing, today we introduce our Disc Filter for everyone.

Disc filter in an essential device on UV ink pipe for delivering ink from ink bottle to print head, normally it is installed under the mainboard of print head and connect to 2^nd-grade ink box, print heads. Most of the particles shall be removed above the filtering screen, you just need dismantle the filter and rinse it when the filter is blocked, and then install it again, so it is very convenient and economical in production.

Technology Parameter:

Item Name: Disc Filter or UV Printer Ink Filter

Diameter: 45 mm

Filtering Rating: 5 micron or MTO

Features & Benefits: Ultra-fine filtration, It is almost suitable for all flat panel printer, UV printer, universal printer and also the variety of inks like solvent ink, water-based ink, UV ink, etc. to remove particles, protect print head, extend service life of print head.

In order to protect print head, we suggest the filter be changed once per six months.

Maintenance of disc filter on UV printer:

1. The key part of the filter is the filtering screen or filtering cartridge, it is made from specific material and belong to quick-wear part, so it need to be protected very carefully;
2. After it’s worked for a period of time, it caught a certain amount of substances when pressure differential increase, flow rate decrease, it is time to clear all the substance inside while rinse filter;
3. Be very carful not to deform or ruin precision filter element when it is clearing, or it can not meet the filtering demand;

How to select disc filters?

1. Filtering rating can meet production requirement;
2. It is able to keep stable flow rate for a period of comparably longer time;
3. It is strong enough to resist to liquid pressure;
4. Good performance in anti-corrosion, working stablly under specified temperature;
5. It is easy to install and clean.
