Specifications
Brand Name :
Taida
Model Number :
20241114-03
Certification :
ISO9001,SGS,ROHS,REACH,UL
Place of Origin :
DongGuan of China
MOQ :
100 pcs
Price :
communication
Payment Terms :
Western Union, T/T,PAYPAL
Supply Ability :
130000 +pcs +a Month
Delivery Time :
4-5 days for Samples making ;10-15 days for Batch goods
Packaging Details :
PE bags first and Foam in Carton and etc
Material :
Polyester or Polycarbonate ,silicone or other
Color :
Pantone, RAL CMYK ,RGB
Pitch of Connect :
0.5MM or others
Adhesive :
3M adheisve or others
Button type :
Embossing metal dome
Embossing shape :
Pillow embosing
circuit options :
FPC circuit
Appition :
Test device
Description

Thermallyformed Polyester Led Backlit Light Switch Keypad For Test Device

Considerations:

  • Quality: Look for reputable brands to ensure safety and durability.
  • Compatibility: Ensure compatibility with your existing electrical system and bulbs.
  • Brightness Level: Choose a model with an appropriate brightness level for your needs.

Benefits:

  1. Energy Efficiency: Typically uses very little power, as the LED consumes minimal energy.
  2. Visibility: The LED light makes it easy to locate the switch in the dark, improving safety and convenience.
  3. Modern Aesthetic: Provides a sleek, contemporary look that can enhance the decor of a room.
  4. Status Indication: Can indicate whether the light is on or off, depending on the design.

Features:

  • Different Colors: Available in various LED colors (e.g., white, blue, green) to match your décor or preferences.
  • Easy Installation: Designed to fit standard electrical boxes, making installation straightforward for most DIYers.
  • Dimmable Options: Some models allow for dimming of the LED light for less brightness at night.


Membrane keyboard foil Specification:

Overlay material ---For front or face overlay
PolyesterPolycarbonate

1 Highly versatile for embossing
2 Highly resistant for chemicals
3 Better durability

1 wide range of the surface finishes and thicknesses
2 More cost-effective

Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .
Pedestal embossingRim embossingPillow embossingDim embossing
Windows or LCD --- For display functions
Printed colors windows such like red ,black and so onTransparent finishes windows
Keys
Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kindsNon-tactile keys: printed silver spot on the circuit
LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others
EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs
Cables --- is extension of circuit and communication with your device
Screen printing conductive silver cableCopper plated cable /Polyimide or FPCPCB cable
Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector
Shielding --- For protection function
Gasket seal/Waterproof :protect the conductors against from the humidity and splashesEMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect
Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others
Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA
Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL
Standard Tolerances :+/-0.2MM





Performance Index

EnvironmentlOperating Temperature-40°C to +80°C (-40°to 176°F)
Storage Temperature-40°C to +85°C (-40°to 185°F)
Humidity40°C, 90% to 95% for 240 hours
Vibration20G's max.
MechanicalActuation ForceNon-tactile 60g to 300g (2oz to 10oz)
Tactile 150g to 400g (6oz to 14oz)
Switch StrokeNon-tactile 0.1 to 0.5mm
Life ExpectancyTactile 0.6 to 1.5mm
Non-tactile >5 million actuations
Tactile >1 million actuations

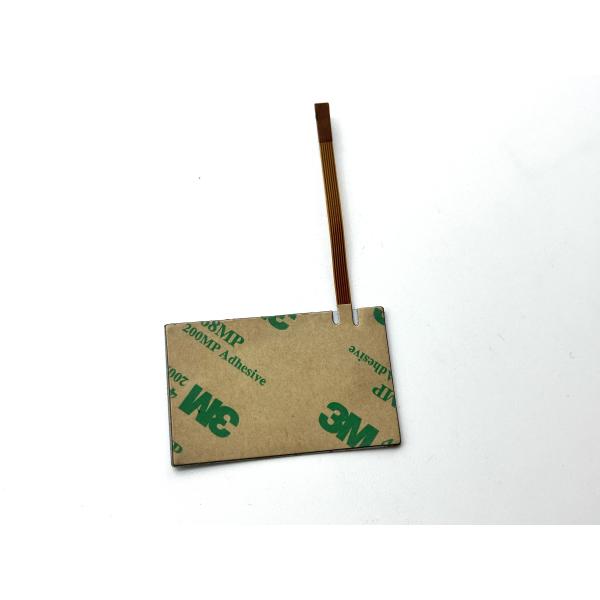

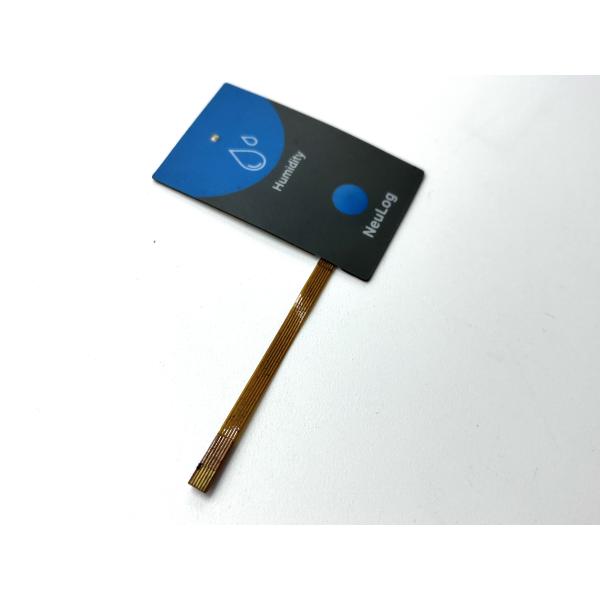

More photos show :
Thermallyformed Polyester Led Backlit Light Switch Keypad For Test DeviceThermallyformed Polyester Led Backlit Light Switch Keypad For Test Device
Thermallyformed Polyester Led Backlit Light Switch Keypad For Test DeviceThermallyformed Polyester Led Backlit Light Switch Keypad For Test Device

FAQ:
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.
Q2. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
