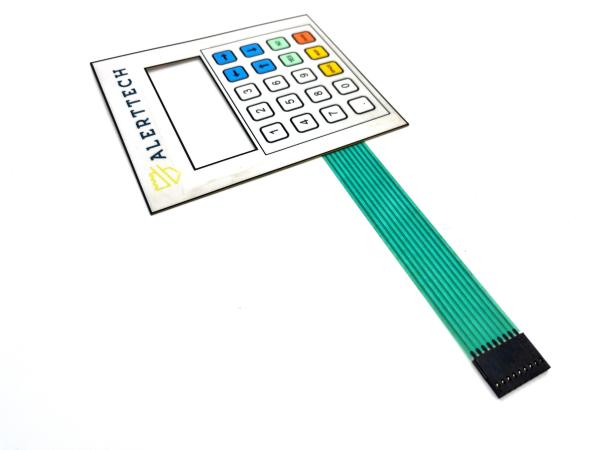

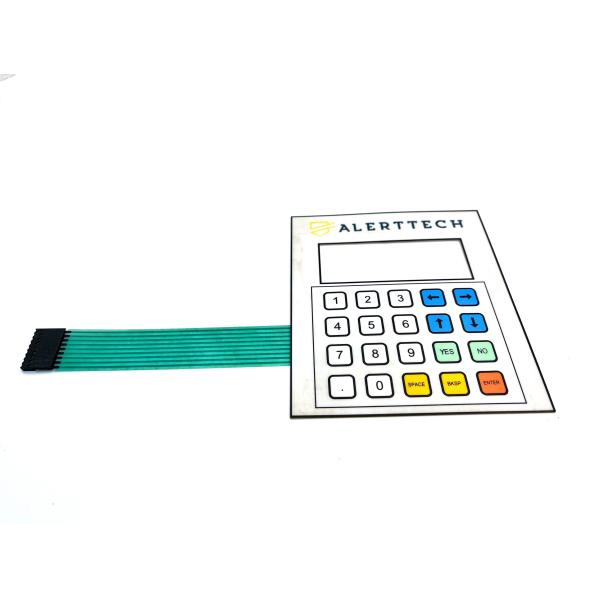

Tactile Rasied Buttons Tactile Metal Dome Switchl With Nicomatic Female Connector

Tactile Raised Buttons

• Functionality: These buttons provide tactile feedback when pressed, making them suitable for applications where user interaction is essential.
• Design: Often designed to be raised, making them easy to locate and activate.

Tactile Metal Dome Switches

• Construction: Made from metal, these switches are known for their durability and reliability.
• Activation: When pressed, the dome deforms, creating a momentary electrical connection that signals a response.
• Applications: Commonly used in keyboards, remote controls, and various electronic devices.

Nicomatic Female Connector

• Type: Nicomatic connectors are known for their compact size and versatility in connecting various electronic components.
• Usage: The female connector allows for easy and secure connections to the tactile switches, facilitating integration into electronic systems.

Considerations

• Specifications: Check the specifications such as size, actuation force, and electrical ratings to ensure compatibility with your application.
• Mounting: Consider how the buttons will be mounted in your device, as this impacts user experience.

Specification:

1)Material (for front or face overlay)

Polyester:

1.Highly versatile for embossing

2.Highly resistant to chemicals

3.Better durability

4.For internal and external use, UV resistance

Polycarbonate:

1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)

2. cost-effective in price

3.For internal and external use

2) Embossing

Rim embossing/pillow embossing/dimple embossing

Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.

3)Windows(for display function)

1. print different colors windows, As transparent grey/Red/green window for display

2. Clear/Transparent window for LCD display

2. Matt/semi-transparent window for LED

4)Keys/buttons

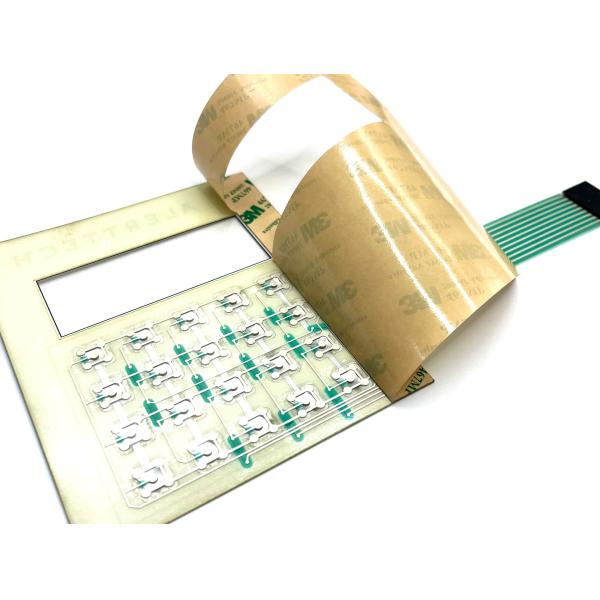

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing dots with flat key

5) Embeded LEDs

Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.

LED colors: white, yellow, orange, green, red, or double colors LED.

6)Cable

It is an extension of the printed circuit and is used to communicate with your device.

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

9)Adhesive

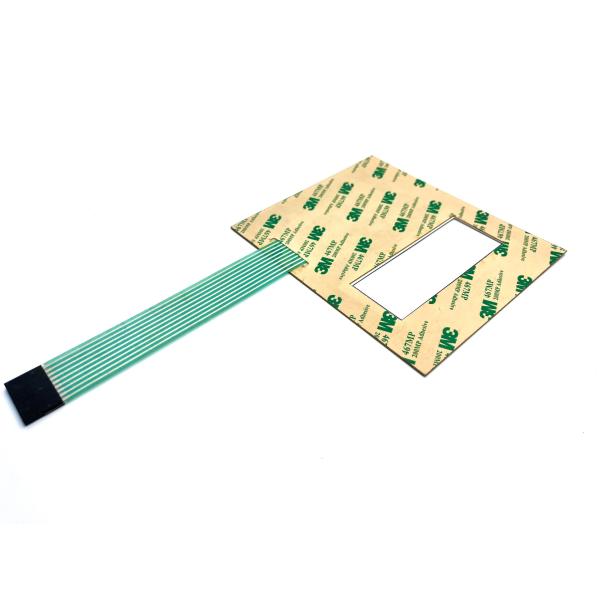

mostly used are 3M-double-side glue

10)Backplate-

in aluminum, polycarbonate, acrylic, PCB

Product index:

Operating voltage: 35V DC

Operating current: 100mA 1W

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V

Operating temperature: Flat/Metal dome:-20°c to +80°c

Storage temperature: Flat/Metal dome:-40°cto +80°c

Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

Switch stroke: 0.1 to 0.6mm

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Tactile ratio: FC > 40%

Operating humidity: up to 95% RH

Female, male connector, solder pins and heat seal connectors are available

More photos show :



Application:

Membrane switches are used in a wide variety of applications across different industries. Here are some of the common applications that utilize membrane switch technology:

Consumer Electronics:
TV, audio, and home entertainment system remote controls
Household appliances like microwaves, ovens, and washing machines
Thermostat and HVAC control panels
Game controllers and mobile device accessories
Industrial and Commercial Equipment:
Control panels for industrial machinery, automation systems, and factory equipment
Medical devices and diagnostic equipment
Instrumentation and measurement devices
Outdoor and marine equipment (e.g., marine navigation systems, outdoor power tools)
