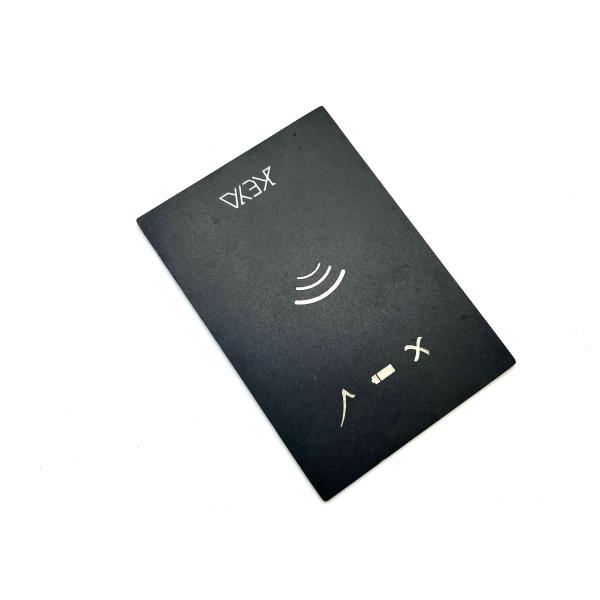

Customizable Matte Coating PC Standard Membrane Switch With Membrane Button Panel

A membrane button panel is a flat, flexible switch used in various electronic devices. It consists of several layers, including:

1. Top Layer: This is typically made of a durable material like polyester or polycarbonate, printed with graphics and labeling for the buttons.

2. Spacer Layer: This layer separates the button contacts and prevents accidental activation.

3. Switch Layer: This contains conductive traces that connect the buttons to the circuit board. When a button is pressed, it completes the circuit and sends a signal.

4. Adhesive Layer: Used to attach the panel to the device's surface.

Applications:

• Home appliances
• Industrial control panels
• Medical devices
• Consumer electronics

Advantages:

• Low profile and lightweight
• Customizable designs
• Resistant to dust and moisture

Specification:

1)Material---for front or face overlay

Polyester

1.Highly versatile for embossing 2.Highly resistant to chemicals

3.Better durability 4.For internal and external use

Polycarbonate

1.Wide range of surface finishes and thicknesses

2.More cost-effective 3.For internal and external use

2) Embossing--rim embossing pillow embossing dim embpssing

Graphic overlays can be embossed in order to insert domes (tactile), leave space for mechanical keys and provide tactile indications Pedestal embossing

3)Windows ----for display function

1. print colors windows

2.transparent finishes windows

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing spot

5) Embeded LEDs-

miniature LED, LED colors:white, yellow, orange, green, red, etc.

6)Cable

is an extension of the printed circuit and is used to communicate with your device

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

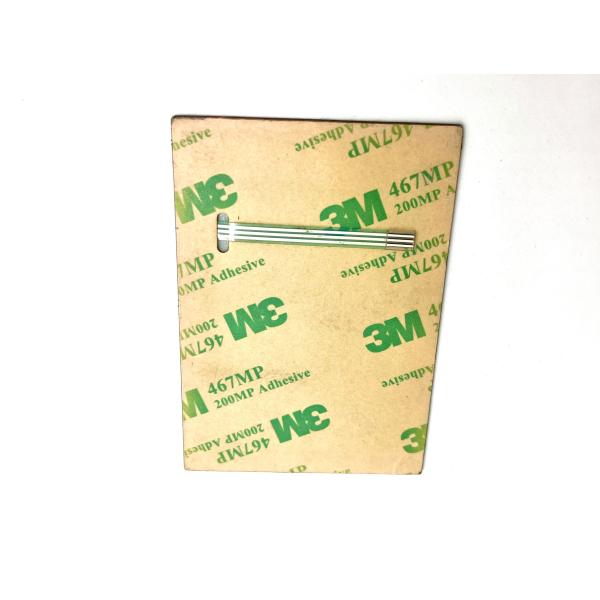

9) Adhesive ----mostly used are 3M-double-side glue

10)Backplate---in aluminum, polycarbonate or acrylic

About Taida.pdf

Another photo show :

FAQ:
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the material, specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.

Q2. What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q3. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
