Custom izable Surface Mount Stock Membrane Switch For Hairfoil Device

Features

• Thin and Lightweight: Membrane switches are typically very thin, making them suitable for compact devices.
• Customizable: They can be designed with various graphics, colors, and layouts to meet specific branding and functional requirements.
• Sealed Design: Many membrane switches are sealed to protect against dust, moisture, and other environmental factors.
• User-Friendly: They often provide tactile feedback and can incorporate LED indicators for enhanced usability.

Applications

• Consumer Electronics: Used in devices like remote controls, calculators, and microwaves.
• Medical Devices: Common in diagnostic equipment and patient monitoring systems.
• Industrial Controls: Found in machinery and control panels where durability is essential.

Advantages

• Cost-Effective: Generally more affordable than other types of switches, especially in bulk production.
• Versatile: Suitable for a wide range of applications across different industries.
• Easy to Clean: The smooth surface makes them easy to wipe down and maintain.

Specification:

1)Material (for front or face overlay)

Polyester:

1.Highly versatile for embossing

2.Highly resistant to chemicals

3.Better durability

4.For internal and external use, UV resistance

Polycarbonate:

1.Different surface(Glossy, Matt) and thickness(From 0.12mm~2mm)

2. cost-effective in price

3.For internal and external use

2) Embossing

Rim embossing/pillow embossing/dimple embossing

Graphic overlays can be embossed in order to insert domes/LED, leave space for mechanical keys/LED and provide tactile indications and better tactile feeling.

3)Windows(for display function)

1. print different colors windows, As transparent grey/Red/green window for display

2. Clear/Transparent window for LCD display

2. Matt/semi-transparent window for LED

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing dots with flat key

5) Embeded LEDs

Small, brilliant lights only about 0.02’’ in height. Avaliable in several vibrant colors.

LED colors: white, yellow, orange, green, red, or double colors LED.

6)Cable

It is an extension of the printed circuit and is used to communicate with your device.

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

9)Adhesive

mostly used are 3M-double-side glue

10)Backplate-

in aluminum, polycarbonate, acrylic, PCB

Common Membrane switch structure

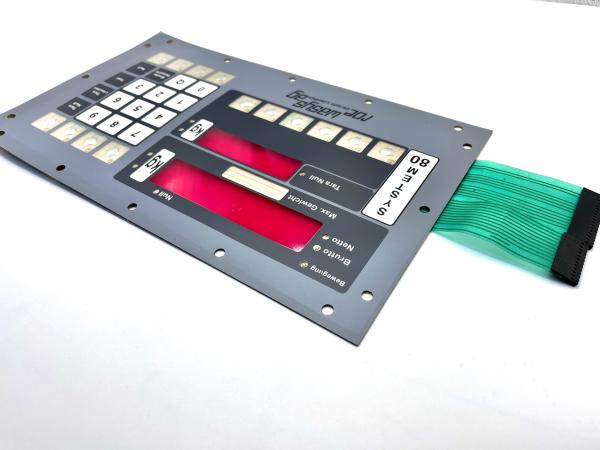

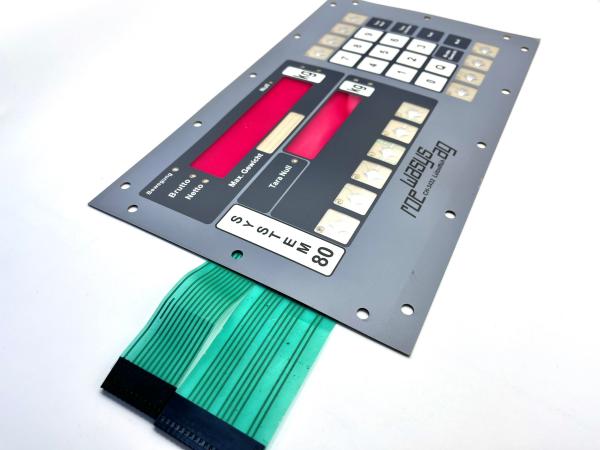

More photos show :
