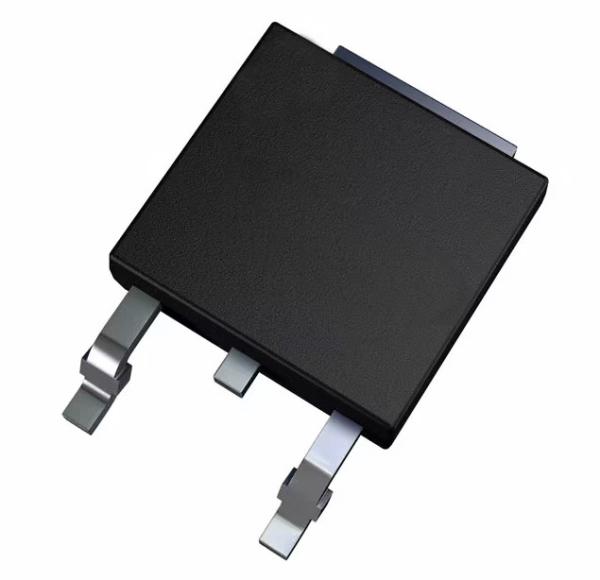

FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA
FGD3N60UNDF Discrete Semiconductor Products IGBT NPT 600V 6 A 60W Surface Mount TO-252AA
Specifications
Brand Name :
onsemi
Model Number :
FGD3N60UNDF
Certification :
RoHS
Place of Origin :
United States
MOQ :
2500PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2.5K PCS
Delivery Time :
2-3 DAYS
Packaging Details :
2500PCS/Tape
Manufacturer :
onsemi
Category :
Single IGBTs
Product Number :
FGD3N60UNDF
IGBT Type :
NPT
Voltage - Collector Emitter Breakdown (Max) :
600 V
Current - Collector (Ic) (Max) :
6A
Current - Collector Pulsed (Icm) :
9A
Vce(on) (Max) @ Vge, Ic :
2.52V @ 15V, 3A
Power - Max :
60W
Switching Energy :
52µJ (on), 30µJ (off)
Input Type :
Standard
Gate Charge :
1.6 nC
Td (on/off) @ 25°C :
5.5ns/22ns
Test Condition :
400V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr) :
21 ns
Operating Temperature :
-55°C ~ 150°C (TJ)
Mounting Type :
Surface Mount
Package / Case :
TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package :
TO-252AA
Description

FGD3N60UNDF IGBT NPT 600 V 6 A 60 W Surface Mount TO-252AA

Datasheet:FGD3N60UNDF

Category Single IGBTs
Mfr onsemi
Product Status Obsolete
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 6 A
Current - Collector Pulsed (Icm) 9 A
Vce(on) (Max) @ Vge, Ic 2.52V @ 15V, 3A
Power - Max 60 W
Switching Energy 52µJ (on), 30µJ (off)
Input Type Standard
Gate Charge 1.6 nC
Td (on/off) @ 25°C 5.5ns/22ns
Test Condition 400V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr) 21 ns
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252AA
Base Product Number FGD3N60

Additional Resources

ATTRIBUTE DESCRIPTION
Other Names FGD3N60UNDFCT
FGD3N60UNDFTR
FGD3N60UNDFDKR
Standard Package 2500

Data Picture:https://www.onsemi.com/pdf/datasheet/fgd3n60undf-d.pdf
