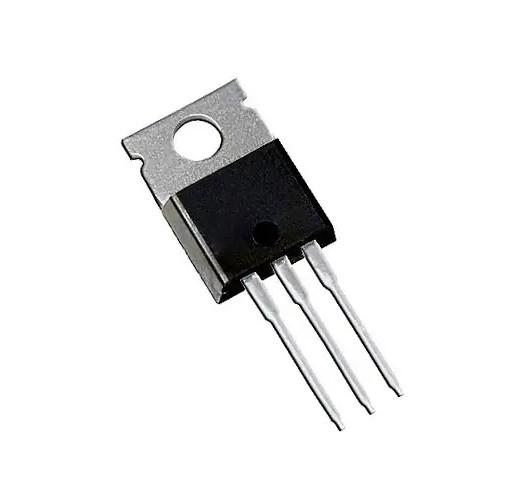

IRFB7434PBF N Channel Mosfet Ic 40 V 195A Tc 294W Tc Through Hole TO-220AB
IRFB7434PBF N Channel Mosfet Ic 40 V 195A Tc 294W Tc Through Hole TO-220AB
Specifications
Brand Name :
Infineon Technologies
Model Number :
IRFB7434PBF
Certification :
RoHS
Place of Origin :
United States
MOQ :
50 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20K PCS
Delivery Time :
2-3 DAYS
Packaging Details :
50 PCS/Tube
Category :
Single FETs, MOSFETs
Mfr :
Infineon Technologies
Series :
HEXFET®, StrongIRFET™
Product Status :
Active
FET Type :
N-Channel
Technology :
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) :
40V
Current - Continuous Drain (Id) @ 25°C :
195A (Tc)
Drive Voltage (Max Rds On, Min Rds On) :
6V, 10V
Rds On (Max) @ Id, Vgs :
1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id :
3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs :
324 nC @ 10 V
Vgs (Max) :
±20V
Input Capacitance (Ciss) (Max) @ Vds :
10820 pF @ 25 V
Power Dissipation (Max) :
294W (Tc)
Operating Temperature :
-55°C ~ 175°C (TJ)
Mounting Type :
Through Hole
Supplier Device Package :
TO-220AB
Description

IRFB7434PBF N-Channel 40 V 195A (Tc) 294W (Tc) Through Hole TO-220AB

Features:

Category Single FETs, MOSFETs
Mfr Infineon Technologies
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 195A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id 3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 324 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 10820 pF @ 25 V
Power Dissipation (Max) 294W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220AB
Package / Case TO-220-3

Additional Resources

ATTRIBUTE DESCRIPTION
Other Names SP001575514
2156-IRFB7434PBF
IFEINFIRFB7434PBF
Standard Package 50

Data Picture:https://www.infineon.com/dgdl/irfb7434pbf.pdf?fileId=5546d462533600a401535616a43e1e55

IRFB7434PBF N Channel Mosfet Ic 40 V 195A Tc 294W Tc Through Hole TO-220AB

±
