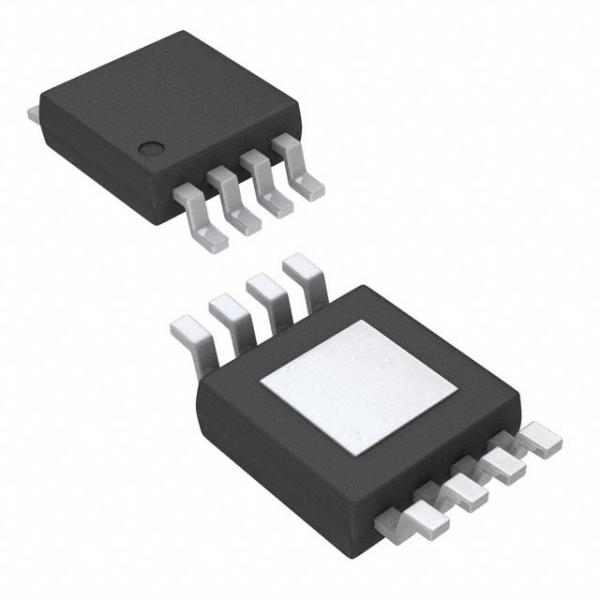

MP1484EN-LF-Z Step Down Switching Regulator Ic 0.925V 1 Output 3A 8-SOIC 0.154 3.90mm Power IC Chip
MP1484EN-LF-Z Step Down Switching Regulator Ic 0.925V 1 Output 3A 8-SOIC 0.154 3.90mm Power IC Chip
Specifications
Brand Name :
MPS
Model Number :
MP1484EN-LF-Z
Certification :
RoHS
Place of Origin :
America
MOQ :
2500 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2.5K PCS
Delivery Time :
2-3 DAYS
Packaging Details :
2500 PCS/Tape
Manufacturer :
Monolithic Power Systems Inc.
Category :
Voltage Regulators - DC DC Switching Regulators
Product Number :
MP1484EN-LF-Z
Product Status :
Not For New Designs
Number of Outputs :
1
Voltage - Supply (Min) :
4.75V
Voltage - Supply (Max) :
23V
Voltage - Output (Min/Fixed) :
0.925V
Voltage - Output (Max) :
20V
Current - Output :
3A
Frequency - Switching :
340KHz
Operating Temperature :
-40°C ~ 85°C (TA)
Package / Case :
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Description

MP1484EN-LF-Z Buck Switching Regulator IC Positive Adjustable 0.925V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Expose

Datasheet:MP1484EN-LF-Z

Category Voltage Regulators - DC DC Switching Regulators
Mfr Monolithic Power Systems Inc.
Product Status Not For New Designs
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 23V
Voltage - Output (Min/Fixed) 0.925V
Voltage - Output (Max) 20V
Current - Output 3A
Frequency - Switching 340kHz
Synchronous Rectifier Yes
Operating Temperature -20°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-SOIC-EP
Base Product Number MP1484

Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 1589-1525-6
MP1484EN-LF-Z-ND
1589-1525-2
1589-1525-1
Standard Package 2500

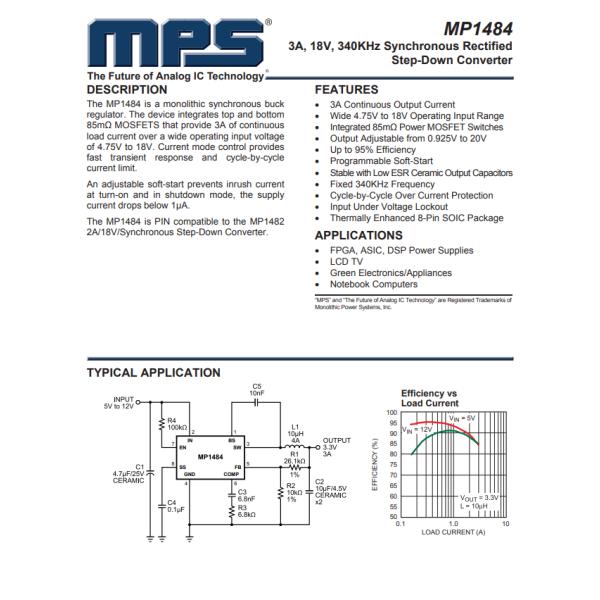

DESCRIPTION

The MP1484 is a monolithic synchronous buck regulator. The device integrates top and bottom 85mȍ MOSFETS that provide 3A of continuous load current over a wide operating input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit.

An adjustable soft-start prevents inrush current at turn-on and in shutdown mode, the supply current drops below 1μA.

The MP1484 is PIN compatible to the MP1482 2A/18V/Synchronous Step-Down Converter.

FEATURES

* 3A Continuous Output Current

* Wide 4.75V to 18V Operating Input Range

* Integrated 85mȍ Power MOSFET Switches

* Output Adjustable from 0.925V to 20V

* Up to 95% Efficiency

* Programmable Soft-Start

* Stable with Low ESR Ceramic Output Capacitors

* Fixed 340KHz Frequency

* Cycle-by-Cycle Over Current Protection

* Input Under Voltage Lockout

* Thermally Enhanced 8-Pin SOIC Package

APPLICATIONS

* FPGA, ASIC, DSP Power Supplies

* LCD TV

* Green Electronics/Appliances

* Notebook Computers

Data Picture:https://media.digikey.com/pdf/Data%20Sheets/Monolithic%20Power%20PDF's/MP1484.pdf
