MP020-5GS-Z Buck Boost Converter Chip Offline Flyback Topology 120Hz 75kHz 8-SOIC-7A
MP020-5GS-Z Buck Boost Converter Chip Offline Flyback Topology 120Hz 75kHz 8-SOIC-7A
Specifications
Brand Name :
MPS
Model Number :
MP020-5GS-Z
Certification :
RoHS
Place of Origin :
America
MOQ :
2500PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100K PCS
Delivery Time :
2-3 DAYS
Packaging Details :
2500PCS/Tape
Manufacturer :
Monolithic Power Systems Inc.
Category :
AC DC Converters, Offline Switches
Product Number :
MP020-5GS-Z
Number of Outputs :
1
Output Configuration :
Positive
Voltage - Breakdown :
700V
Voltage - Start Up :
17.3V
Voltage - Supply (Vcc/Vdd) :
6.6V ~ 28V
Frequency - Switching :
120Hz ~ 75kHz
Power (Watts) :
8W
Operating Temperature :
-40°C ~ 125°C (TJ)
Package / Case :
8-SOIC (0.154", 3.90mm Width), 7 Leads
Description

MP020-5GS-Z Converter Offline Flyback Topology 120Hz ~ 75kHz 8-SOIC-7A

Datasheet:MP020-5GS-Z

Category AC DC Converters, Offline Switches
Mfr Monolithic Power Systems Inc.
Product Status Not For New Designs
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Voltage - Start Up 17.3 V
Voltage - Supply (Vcc/Vdd) 6.6V ~ 28V
Frequency - Switching 120Hz ~ 75kHz
Power (Watts) 8 W
Fault Protection Current Limiting, Open Circuit, Over Load, Over Temperature, Over Voltage
Operating Temperature -40°C ~ 125°C (TJ)
Package / Case 8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package 8-SOIC-7A
Mounting Type Surface Mount
Base Product Number MP020

Additional Resources:

ATTRIBUTE DESCRIPTION
Standard Package 2500

DESCRIPTION

The MP020-5 is an offline, primary-side regulator that provides accurate constant voltage and constant current regulation without an opto-coupler or a secondary feedback circuit. It has an integrated 700V MOSFET. The MP020-5's variable off-time control allows a flyback converter to operate in discontinuous conduction mode.

The MP020-5 also features protection functions such as VCC under-voltage lockout, over-current protection, overtemperature protection, open circuit protection (OCkP) and over-voltage protection. Its internal high-voltage start-up current source and powersaving technologies limit the no-load power consumption to less than 30mW.

The MP020-5's variable-switching-frequency technology provides natural spectrum shaping to smooth the EMI signature, making it suitable for offline, low-power battery chargers and adapters.

The MP020-5 is available in SOIC8-7A.

FEATURES

 Primary-Side–Control without Opto-Coupler or Secondary Feedback Circuit

 Precise Constant Current and Constant Voltage Control (CC/CV)

 Integrated 700V MOSFET with Minimal External Components

 Variable, Off-Time, Peak-Current Control

 550µA High-Voltage Current Source

 30mW No-Load Power Consumption

 Programmable Cable Compensation

 Multiple Protections: OVP, OCP, OCkP, OTP, and VCC UVLO

 Natural Spectrum Shaping for Improved EMI Signature

 Low Cost and Simple External circuit

 SOIC8-7A Package

APPLICATIONS

 Cell Phone Chargers

 Adapters for Handheld Electronics

 Stand-By and Auxiliary Power Supplies

 Small Appliances

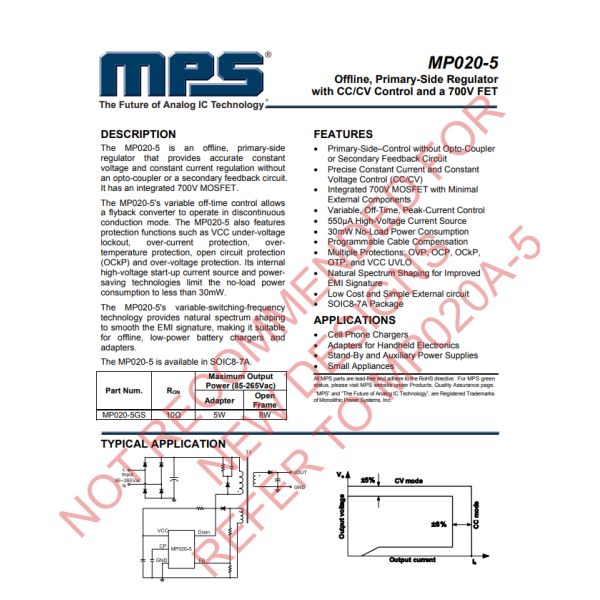

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP020-5/document_id/46
