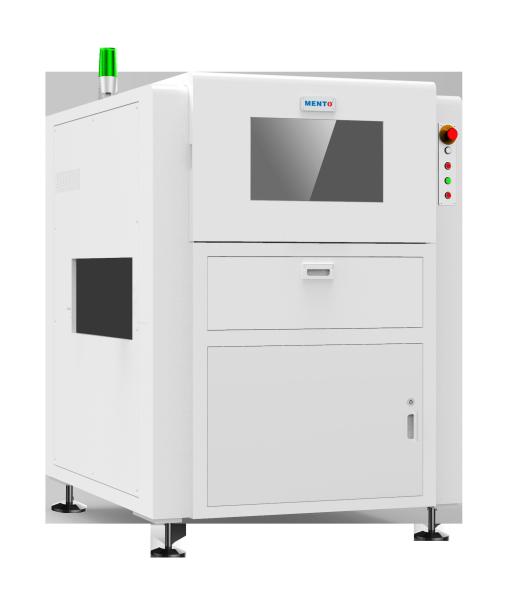

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection
Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection
Specifications
Brand Name :
MENTO
Model Number :
K2012
Certification :
FCC.ROHS,CCC
Place of Origin :
DONGGUAN
MOQ :
3
Supply Ability :
10pcs+20 work days
Delivery Time :
20 work days
Packaging Details :
W1350xD1000xH1600mm
Operation :
Windows 10 64Bit
Delivery :
ups,dhl,fedex,as your order
Fov Size :
42mmx42mm 56mmx56mm
Board Thickness :
0.6 - 2.5mm
Optical Source :
RGB + W four color integral
Air Source :
0.4-0.6Mpa
Operating System :
Windows 10
Shipment :
on-time shipment
Power Supply :
AC 220V, 50/60Hz
Producet Name :
SMT SAKI BF-Planet-X AOI machine
Pcb Size :
50*50mm~510*460mm
Lead Time :
40 days
Camera :
5MP; color
Functionality :
Industrial use (SMT)
Features :
world's most advanced 3D AOI system
Description

2D Automated Optical Inspection Online Single-Track
Model K2012
Testing Capability Test items CHIP component body, CHIP component solder joints, characters, DIP solder joints
Minimum component CHIP:01005 Pitch:0.3mm
Detection Method Deep Learning, Image Processing
Optical System Camera 12MP high-speed color industrial camera
Telecentric Lens 0.36X/0.23X
Resolution 10um/15um
FOV 40x30mm /60x45mm
Detection Speed 3FOV/s
Software System Operating System Ubuntu 20.04
Mechanical Properties PCB thickness 0.3~10mm(Warp≤5mm)
Component Height Upper 30mm, Lower 84mm(special height can be customized)
Driving device Servomotor+Ball Screw+Linear Guideway
Moving speed Max.600mm/s
Positioning accuracy ≤8um(after calibration)
PCB transport guide PCB rail transportation height:900+20mm(from ground to PCB rail transportation surface)
600mmx700mm
Minimum distance between PCBs:≤90mm
Parameters Curing method AC220V/50Hz/2000W
Detection screen W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Accuracy 1100KG
Re-measurement Accuracy ≥0.5MPa
Wafer Ring Size Temperature:5~40℃, relative humidity 25%~80%(no frost)
Number of wafers handledsimultaneously Standard SMEMA interface
Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Product testing capabilities(Online Single-Track)

  1. Misplacement 2. Missing Component 3. Polarity Reversal 4. Non-Wetting 5. Solder Hole 6. Collinear Anomaly 7. Pin Warpage

8. Insufficient Soldering 9. Short Circuit 10. Offset 11.DIP Component Missing 12.DIP pins unextended......

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Component collinearity detection(Online Single-Track/1.2m online Single-Track)

1. Calculate the rotation angle of the component

2. Calculate the range between the maximum and minimum offset of the component

3. Distance between components

4. The distance between the component and a reference point or a line

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Collinearity detection (collinearity, absolute distance, collinearity range,component spacing)

Comprehensive MES data interfacing capabilities and powerful SPC system(Online Single-Track/1.2m online Single-Track)

1. Real-time statistics of the top 10 alarm components

2. Enables setting an alarm count to automatically halt upstream equipment.

3. Export the entire board image of each PCB in real time for subsequent traceability

4. Indigenously developed MES interface supports standard and customized formats.

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Labor-saving mode

Through data transmission and other methods, one person can review the AOI alarm data of multiple lines, thereby realizing a labor-saving mode.

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Product Features - Equipment Platform

The three-section track is detachable and can be changed according to the length of the product. It can be applied to various products and lines in the workshop.

1. The integral casting platform effectively eliminates structural stress and lays the foundation for machine accuracy and stability.

2. Pull-out electronic control component platform makes maintenance more user-friendly.

3. Professional and beautiful appearance design, more in line with ergonomics and visual aesthetics.

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection

Temperature and Humidity Controlled SMT AOI Machine for Precise Inspection
