K32 series 3D Solder Paste Inspection

Device model K3205

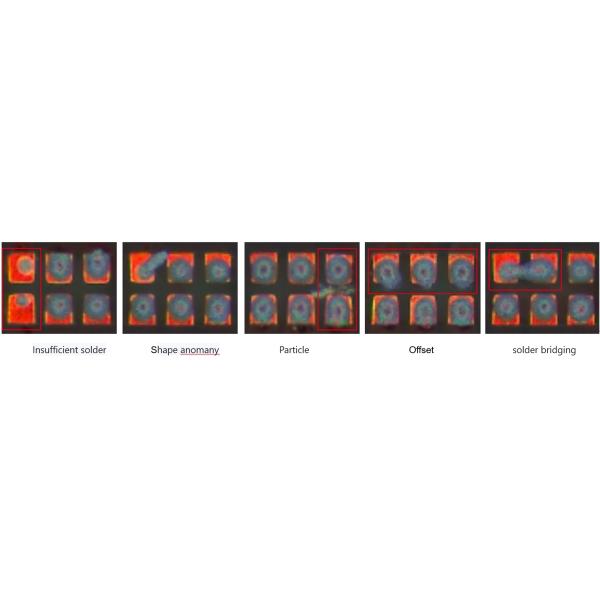

Detection capacity Detection items Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset
Scanning method Stop&Go
Optical system Camera 5MP high speed color industrial camera
Light Source Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source
Resolution 10μm & 15um (optional)
Detection performance Height accuracy (calibration module) 1μm (using standard calibration block)
Volume repeatability <1% (standard verification block, 3Sigma)
Maximum Plate Bending Compensation Value ±3mm
Detection Capability GRR <10%at6o(+50%tolerance, 5μm resolution)
Maximum detection height 500μm
Solution to shadow problem Phase shift technology & bidirectional 3D Structured Light system
Plate bending real-time compensation method Plate Bend Compensation (Z-Tracking+Pad Referencing)
Test screen Color (3D and 2D images displayed together)
Driving equipment Servomotor+Screw Guide
Moving speed 800mm/s
Minimum measurable product size 50mmx50mm
Maximum product measurable size 400mmx500mm
PCB thickness 0.5~6mm
Track width adjustment Automatic width adjustment, manual width adjustment
Circuit board conveying/fixing Belt conveyor/pneumatic clamp fixing
Conveying direction From left to right, right to left
Orbital height 900±20mm
Computer Configuration Mainframe CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T
Monitor 22"LED
Operating system Ubuntu
Parameters Overall size W1350xD1000xH1600mm (excluding alarm light)
Weight 1100KG
Power source AC220V/50~60Hz/2000W
Air Pressure 0.5Mpa
Software Supported Input Formats Support Gerber format (274X), ODB++
Statistical management tools

Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk,

%Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display
Environmental requirements Temperature: 5~40℃, relative humidity: 25%~80% (no frost)
Upstream and downstream equipment communication Standard SMEMA interface

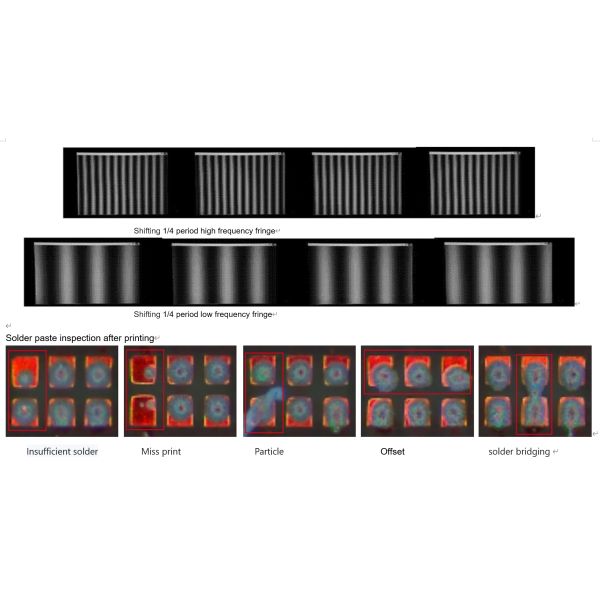

Phase profile measurement principle

Object deforms (modulates) the sinusoidal pattern

Calculate sinusoidal phase and find height (demodulation)

Anti-interference, high precision, large range

1. The moving stripes ensure the ability to resist ambient light interference.

2. High-frequency stripes ensure high enough vertical resolution

3. Low-frequency stripes ensure a wide enough measuring range.

3D AOI Machine High Precision Solution for Solder Paste Inspection and 5 megapixel 3D measurement and comparison

3D AOI Machine High Precision Solution for Solder Paste Inspection and 5 megapixel 3D measurement and comparison

Comprehensive MES data interfacing capabilities and powerful SPC system

1. Real-time statistics of the top ten alarm components

2. The number of alarms can be set to lock the machine

3. Export the entire board image of each PCB in real time for subsequent traceability
