Water Treatment Plant /Water Treatment System / Water Purifying Equipment

Water Treatment Plant, also called Water purification Plant or Water Treatment System, is the purification process of removing undesirable chemicals, biological contaminants, suspended solids and gases from water. The goal is to produce water fit for human consumption such as drinking water. It mainly include the multi-medium filter, active carbon filter, water softener (Sodium Ion Exchanger), precision filter, RO (reverse osmosis) filtration system and sterilization device.

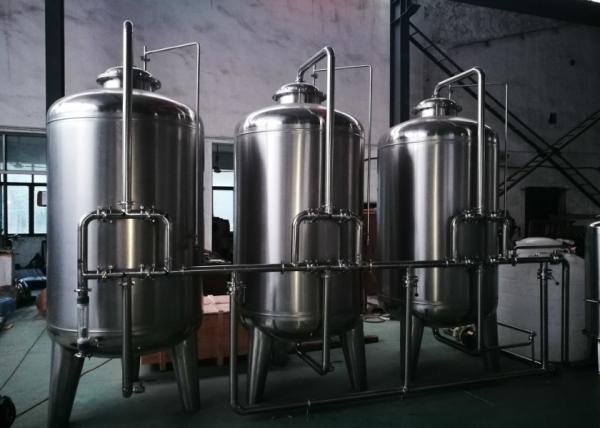

Multi-medium Quartz Filter also called sand filter is mainly used to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Carbon Filter can effectively remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Resin Softener also called Sodium Ion Exchanger is mainly used for water softening, primarily to remove hardness of water (mainly calcium ion and magnesium ion). Thereby it can effectively prevent the reverse osmosis membrane fouling.

Precision Filter also called Micron Filter has inherently uniform structures which like a sieve, retain all particles larger than the precisely controlled pore size on their surface to further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running processes.

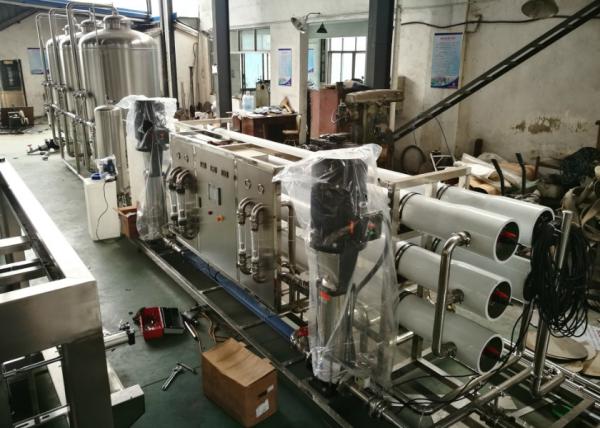

RO (reverse osmosis) filtration system is the most economical method of removing 90% to 99% of all contaminants. The pore structure of RO membranes is much tighter than UF membranes. RO membranes can be highly effective in removing several impurities from water such as total dissolved solids (TDS), turbidity, asbestos, lead and other toxic heavy metals, radium, and many dissolved organics

During water purification process, Ultraviolet (UV) sterilization and ozone sterilization are widely adopted to sterilize the water.

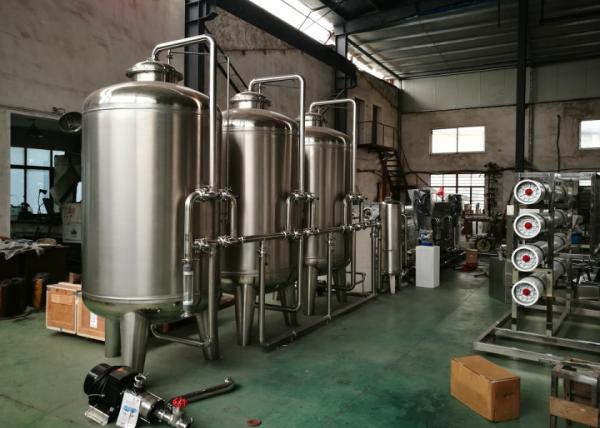

The Main Parts of Pure Water Treatment Plant

Flow Chart

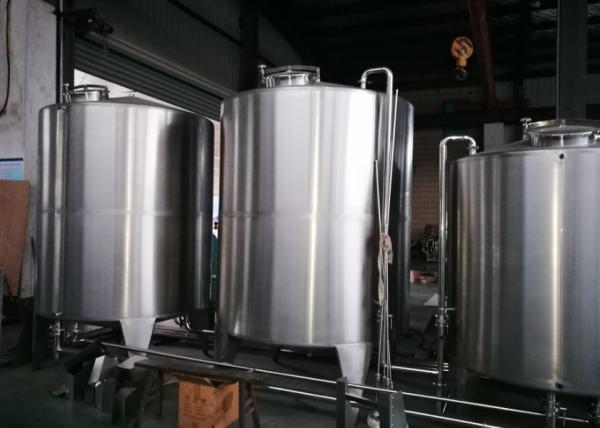

Raw water tank—raw water pump—multi-medium filter--active carbon filter water softner (Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—finished product water tank
