120-347Vac input intelligent microwave motion sensor with UL approval

1. Features

• Built-in motion sensor & daylight sensor
• On/Off, Step Dimming Function
• Wide Input Voltage range 120/277/347Vac
• 15m Max. Mounting Height
• 1-10V & Synchronous Control Interface
• Sensor parameter can be set via DIP switch.
• 5 Year Guarantee

2. Parameters

3.Function

1. On-off function (Stand-by Period“0s”)

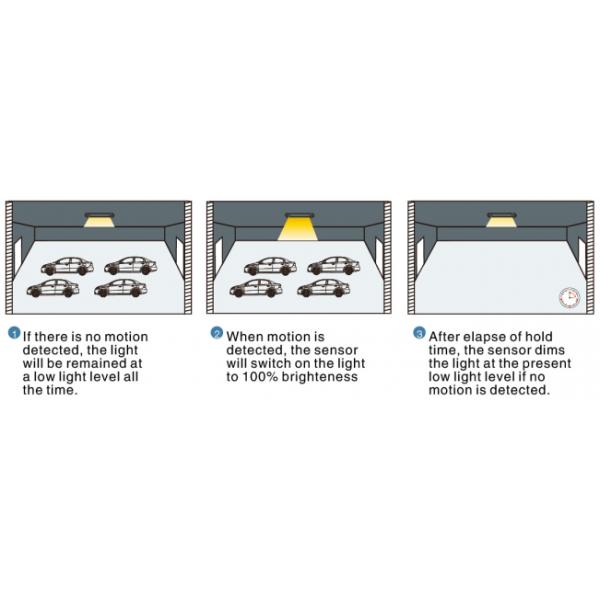

2. 2-step dimming function (Stand-by Period“+∞”)

3. 3-step dimming function (Stand-by Period“5s/5min/10min/30min/1h”)

4.Dimension (mm)

Note: During installation, the microwave antenna should be exposed as shown in the figure to prevent metal from blocking and shielding the microwave signal.

5. Wiring

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

6. Structure

7. Detection pattern

1)Ceiling mounting

*When installation height is 3 / 6 / 9 meters, movement signal can be detected at 25%/50%/75%/100% detection sensitivity. When at 12 meters, movement signal is only detected at 75% 100% sensitivity, no movement signal detected for 25%/50% sensitivity.

1)Wall mounting:

8. Dip switch settings

1. Detection Area

2. Hold Time

3. Stand-by Period

4. Daylight Sensor

5. Dimming brightness preset function

9. Initialization

1. On/Off function & 3-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

2. 2-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.

10. Factory setting

Detection Area: 100%, Hold Time: 5S, Daylight Sensor: Disable, Stand-by Period: 0S,

Dimming brightness preset function: 10%

11. Application notice

1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

2) The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.

3) The dimming performance could be different from different 0-10v drivers.

4) The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.

5) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.

6) This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.

7) The distance between any inductive sensors should be greater than 3m.

8) When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.

9) Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen.

10) Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.

11) For a new installation environment, it is recommended to install and test 5pcs of products before batch installation.
