5.8G 1-10v Dimming Corridor Function Microwave Motion sensor MC003V D With Daylight Sensor For Gas Station Application

Description

MC003V-D is detechable version with smaller motion sensor, which is suitable for most fittings. The function is same with Merrytek model MC003V. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.

Feature

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.

4. 4-pole press-in terminal (L,N,N,L′),easy assembly.

5. Compact size makes it suitable to fix within most luminaries

6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

7. Wide detection area, range up to 16m in diameter.

8. The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Product Information

Function:

3-step dimming funciton

2-step dimming funciton

Daylight Havesting funciton

Wiring :

MC003V/D+1-10V driver

MC003V/ D+daylight sensor MS01+1-10V driver

Specifications:

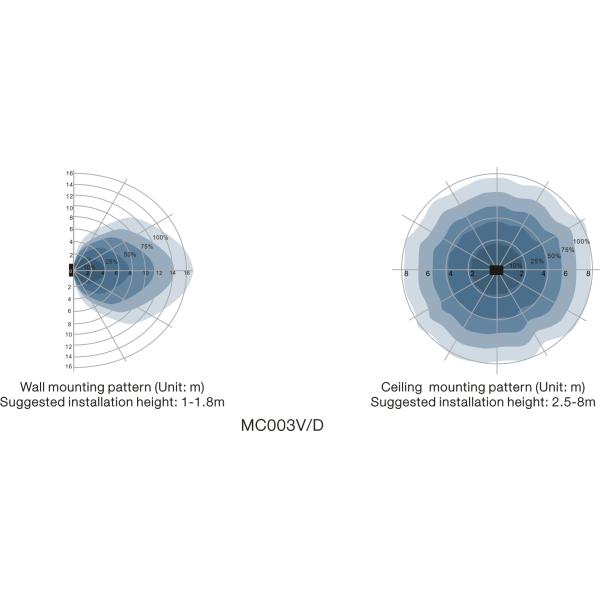

Detection Pattern

Applications

Stairwell, Corridor, Balcony, Pathway, Washroom, Kitchen, Gas Stations, Parking lot , Warehouse ,etc
