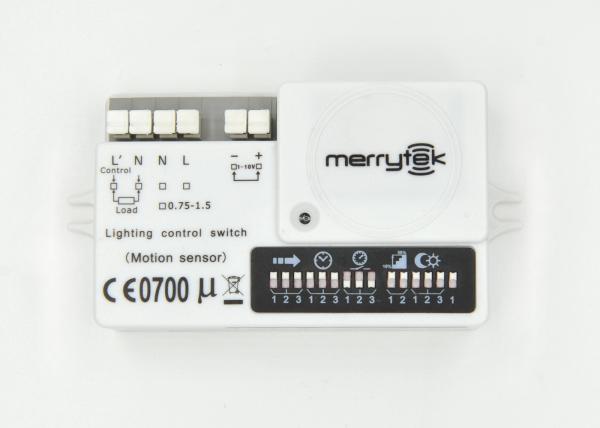

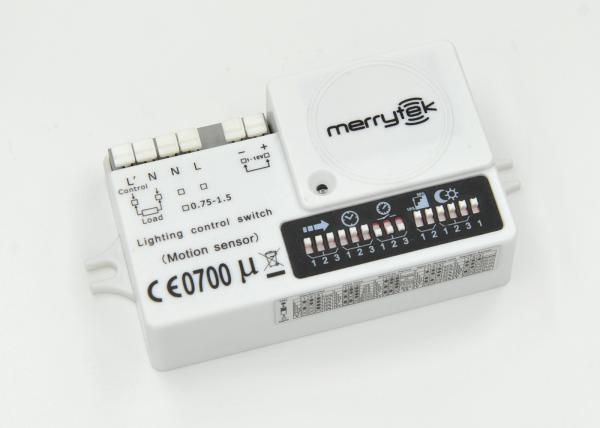

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell
Specifications
Brand Name :
Merrytek
Model Number :
MC003V
Certification :
CE & R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T or western Union
Supply Ability :
20,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Approval :
CE & R&TTE
Product Name :
Microwave motion sensor
Operation temperature :
-35℃~70℃
Function :
2 step /3 step dimming
IP Rating :
IP20
Rated load :
800w(Inductive) 1200w(Resistive)
Operating Voltage :
220~240Vac,50HZ/60Hz
Detection Zone :
Max(D×H):16m×8m
HF system :
5.8GHz ±75MHz, ISM wave band
Size :
92x52x 25.5 mm
Description

800w 1-10v Corridor Dimming Function Microwave Motion Sensor MC003V for Stairwell Application

Description

MC003V is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.

The sensor allows energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.

Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.

Feature

1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.

2. Built-in adjustable daylight sensor.

3. 1-10V interface can match up with Merrytek standalone daylight sensor MS01 and achieve daylight harvesting.

5. 4-pole press-in terminal (L,N,N,L′),easy assembly.

6. Compact size makes it suitable to fix within most luminaries

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

8. Wide detection area, range up to 16m in diameter.

Product information

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

Function

3 -step dimming function

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

2- Step dimming function

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

Wiring

MC003V+1-10V driver

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

MC003V+daylight sensor MS01+1-10V driver

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

Specifications

Operating voltage

220-240Vac, 50Hz

Rated load

800W(inductive), 1200W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 8m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable

Stand-by period

5s / 5min / 10min / 30min / 1h / Disable

Stand-by dimming level

10% / 20% / 30% / 40% / 50%
Life time 50,000 hours
Guaranty 5 years

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

Detection Pattern

800w 1-10v Corridor Dimming DALI Motion Sensor MC003V for Stairwell

Applications:

Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
