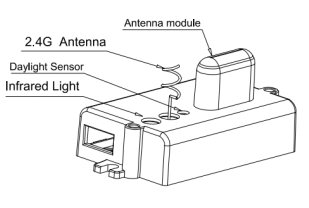

Indoor 2.4G Wireless Microwave Motion Sensor For LED Ceiling Light

For more details, pls refer to as follows:

MC116D RC Spec 2024.01.17.pdf

【Product Features】

• Grouping networking by 2.4G wireless, no need paring or gateway.
• Patented di-pole microwave antenna, no false trigger when installed beLOW metal LED tray.
• Super-narrow microwave senor head, suitable to be fixed in slim LED fixtures.
• All sensor parameters can be set by remote control.
• Output 0-10V dim or PWM dim, 2-step/3-step dim function.
• 6m Max. mouthing height.

【Parameter】

【Function description】

【Diagram】

• Dimension

• Wiring, Function

• Radiation diagram

【Remote Controller】

【Initialization】

When powering on for the first time, the sensor will turn the light on to 100% brightness, and the light will be turned off after 10 seconds. During initialization, movement signal will not be detected.

【Default setting】

Detection area: 100%; Hold Time: 10s; Stand-by Period: 0s; Daylight Sensor: Disable;

Stand-by Dim Level: 10%.

【Application Notice】

• The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring etc.
• The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, which is 165cm/65kg tester, and it is tested in an open indoor environment
• When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling. If you use the wall installation method, please reduce the sensitivity to use or contact our company to confirm the use settings. The light sensitivity threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different time periods, climates, and environments, the illuminance value detected by the light sensor may be different
• Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
• This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering
• The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters
• When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
• Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
• Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product
• Sensor with different 0-10V / PWM driver, LOW light effect may be different
• DC regulated power supply with stable output voltage and LOW ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 100 mA
• Product specifications and parameters may be optimized without prior notice
• For the new installation environment, it is recommended to test 5pcs samples before installation.
