5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height
Specifications
Brand Name :
Merrytek
Model Number :
MC046S
Certification :
CE & R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T or western Union
Supply Ability :
20,000pcs per month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Product Name :
Microwave motion sensor
Size :
87x43x 29mm
Approval :
CE & R&TTE
Rated load :
400w(Inductive) 1200w(Resistive)
Operation temperature :
-20℃~60℃
Operating Voltage :
220~240Vac,50HZ
Function :
ON-OFF
Detection :
Max(D×H):16m×12m
IP Rating :
IP20
HF system :
5.8GHz ±75MHz, ISM wave band
Description

Microwave Motion Sensor MC046S 12m High Mounting Height 220-240vAC Operate / 5 Years Warranty

Description:

MC046S ,adopt the radar detection principle and latest microwave technology ,it with a high mounting height 12m for detection.as an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there is

no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with

sufficient in natural light.

Features:

1. Automatic switching based on motion and ambient light level.

2. High mounting height up to 12m .

3. Two types of installation, suitable for different luminaries.

4. Zero-crossing point operation helps protect the sensor against in-rush current.

5. 5.8GHz high frequency microwave(C-Band license-free operation)

6. 4-pole press-in terminal (L, N,N,L′),easy assembly.

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

8. MC046S is an innovative motion sensor, switch on the light on detection of movement, and switch off a hold time when there

is no motion detected. As built-in daylight sensor can read brightness value, the sensor does not switch on the light if with

sufficient in natural light.

Function:

ON-OFF function

5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height

Wiring :
5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height

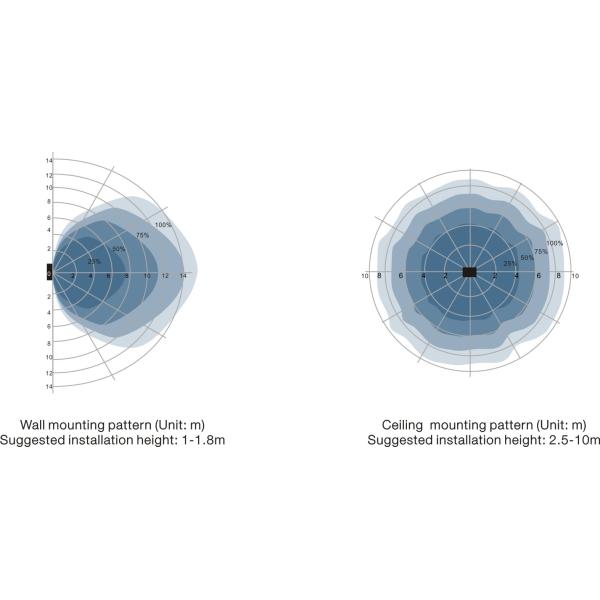

Detection Pattern:

5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height

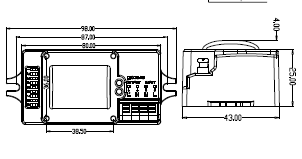

Specifications:

5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height5.8G Microwave Motion Motion Sensor MC046S ,Built-in Daylight Sensor ,Support 12m High Mounting Height

Operating voltage

220-240Vac, 50Hz

Rated load

400W(inductive), 1200W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 12m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

25％/50％/75％/100％

Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable

Life time

50,000 hours

Guaranty

5 years

Applications:

Stairwell, corridor, balcony, pathway, washroom, kitchen, etc.
