Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Automatic Switch Dimmable Motion Sensor With LED Trailing Edge Dimmer
Specifications
Brand Name :
Merrytek
Model Number :
MC003V
Certification :
CE & R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per Month
Delivery Time :
1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Packaging Details :
Packed in bubble bags firstly, and then reinforced with carton or outer packing
Product Name :
Microwave motion sensorr
Detection angle :
150°(wall installation) 360°(ceiling installation)
IP rating :
IP20
Operating Voltage :
220~240Vac,50HZ
Detection Zone :
Max(D×H):16m×8m
HF system :
5.8GHz ±75MHz, ISM wave band
Size :
92x52x 25.5 mm
Approval :
CE & R&TTE
Operation temperature :
-35℃~70℃
Operating principle :
Microwave Motion Sensor
Function :
2 step /3 step dimming
Description

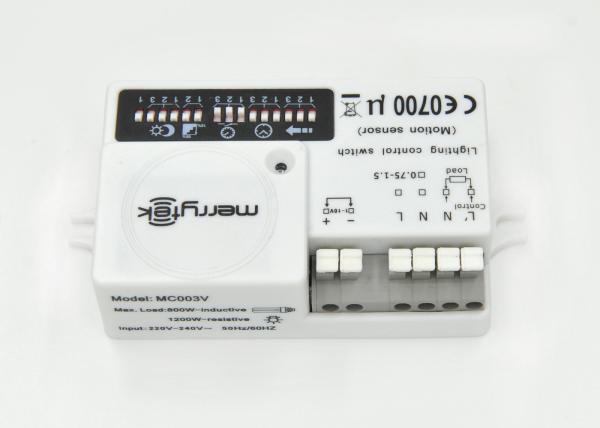

Automatic Switch Dimmable Motion Sensor LED Trailing Edge Dimmer

Description:

  • Automatic Switch on-off and dimming based on motion and ambient light level .
  • Built-in adjustable daylight sensor.
  • Support max inductive load 800w .
  • 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
  • 4-pole press-in terminal (L,N,N,L′),easy assembly.
  • Compact size makes it suitable to fix within most luminaries
  • Detection area, time delay and daylight threshold can be precisely set via DIP switch.
  • Wide detection area, range up to 16m in diameter.

Specifications:

Operating voltage

220-240Vac, 50Hz

Rated load

800W(inductive), 1200W (resistive)

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 8m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-35℃~70℃

Hold time

10s/30s/90s/3min/20min/30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight sensor

5lux / 15lux / 30lux / 50lux / Disable

Stand-by period

5s / 5min / 10min / 30min / 1h / Disable

Stand-by dimming level

10% / 20% / 30% / 40% / 50%

Life time

50,000 hours

Guaranty

5 years

Applications:

Stairwell, Corridor, Balcony, Pathway, Washroom, Kitchen, Gas stations, Parking lot , Warehouse ,etc
