IP20 On / Off Dimmable Motion Sensor For Ceiling Lamp / Tri- Proof Light
IP20 On / Off Dimmable Motion Sensor For Ceiling Lamp / Tri- Proof Light
IP20 On / Off Dimmable Motion Sensor For Ceiling Lamp / Tri- Proof Light
IP20 On / Off Dimmable Motion Sensor For Ceiling Lamp / Tri- Proof Light
Specifications
Brand Name :
Merrytek
Model Number :
MC011D-H
Certification :
CE , R&TTE
Place of Origin :
China
MOQ :
Stop production, not available.
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per Month
Delivery Time :
1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Packaging Details :
Packed in bubble bags firstly, and then reinforced with carton or outer packing
Product Name :
Microwave motion sensor
Rated load :
Max.100WLED light
Operating Voltage :
25-100vd
Detection :
Max(D×H):16m×6m
HF system :
5.8GHz ±75MHz, ISM wave band
Size (L×W×H) :
82x36.5x 25.5 mm
Approval :
CE & R&TTE
Operation temperature :
-20℃~50℃
Function :
ON-OFF 2 step dimming
IP Rating :
IP20
Description

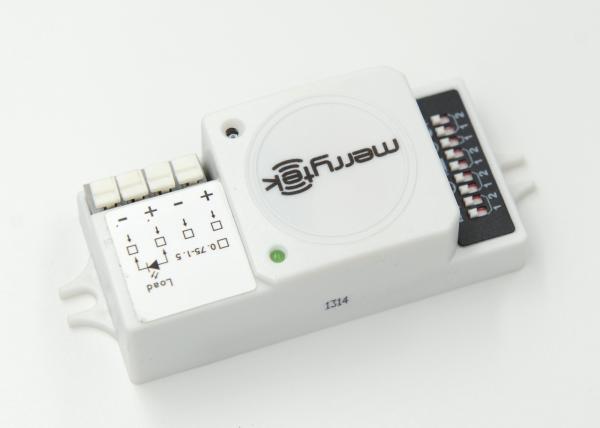

On / Off DC Motion Sensor For Ceiling Lamp , Tri-Proof Light MC011D-H

Description

  • Operating with constant current led driver
  • Offer on off and dimming function
  • High voltage version 25 – 100Vdc
  • Wide detection area, range up to 16m in diameter
  • Compact size, suitable to fix within most luminaries
  • Economic solution to achieve dimming function
  • No need dimmable led driver, simple constant current led driver is comparable
  • Easy installation, workable for ceiling lamp, tri-proof light.
  • Automatic switching based on motion and ambient light level
  • 4-pole press-in terminal (L, N, N, L′), easy assembly
  • Sensor data can be simply set via DIP switch
  • The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.

On-off function

2- Step dimming function

Specifications:

Operating voltage

25 - 100Vdc

Rated load

Max.100wLED light

HF system

5.8GHz±75MHz, ISM wave band

Operating current

1A max

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

10s/90s/3min/10min

Detection sensitivity

10％/50％/75％/100％

Dimming level

10%/20%/30%/40%

Dimming mode

Step dimming

Daylight Sensor

10lux/50lux/Disable

Life time

50000 hours

Guaranty

5 years

Applications:

Stairwell, Corridor, Balcony, Pathway, etc.
