KL90V-PDiiV1 24v Constant Voltage LED Driver 90W For Strip

【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Secondary dimming with 0-10V dimmer and potentiometer
  • Built-in DALI interface DT6
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty

【Parameter】

SeriesNameKL90V-PDiiV1
InputVoltage range198~264Vac 50Hz /60Hz
Rated supply voltage220~240Vac 50Hz /60Hz
DC voltage range200~240Vdc
Input current (@230Vac)0.45A Max
Inrush Current30A (Half current pulse width 100US) @230VAC
Power factor≥ 0.99 (@230Vac,100% load)
Total harmonic distortionTypical: 6% (@230Vac, 100% load)
Stand-by power≤0.3W
Efficiency(230Vac,100% load)92%Max
Wiring methodPush terminal, wire cross section:0.5-1.5mm2
Loop-in&Loop-out quantity16PCS(@230Vac)
Automatic circuit breaker type
(Calculate current in the wire)		B1013C107
B1316C139
B1620C1611
B2025C2014
B2532C2517
OutputOperating modeConstant voltage
Load typeLED
Flickering / Flickering-FreeFlickering-Free
Start up time<1s (@230Vac)
Forward voltage24V
Output current3.75A
Max. output voltage (no-load )30V
Full load output power90W Max.
Minimum load9W
OutputOutput current/voltage tolerance±5%
Wiring methodScrew terminal, wire cross section:2*0.5-2.5mm2
Control MethodPrimary PUSH DimmingPrimary PUSH dimming (Max. lead wire length:20m)
1-10V(0-10V)Dimming1-10V dimming(Port current＜1mA),
(Max. lead wire length:20m)
Dimming Range1%-100%
Secondary PWM dimming0-10V port PWM dimming (3KHz-8KHz)
PotentiometerYes, 100kΩ
DALI functionDALI dimming (Max. lead wire length:300m)
Exception Protection RequirementsOutput over temperature
protection		Yes, reset power on to recover
Output short circuit protectionYes, reset power on to recover

Operating

Environment

Storage temperature/ humidity-40℃~80℃, Humidity:10%–95%
Operating temperature/ humidity-25~50℃
Max. case temp(Tc)85℃
Safety
& EMC		EMC standardEN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standardIEC62386-102, IEC62386-207
Safety standardEN61347-1, EN61347-2-13
CertificationCE
Withstand voltage3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
OthersDegrees of protectionIP20
Type of protectionClass II
Installation typeIndependent installation
Installation dimension202*58*30mm
Memory functionYes, (PUSH with memory function)
PUSH dimming synchronization20 units Max.
Packaging requirementsInstruction+clapboard+outer carton(K=A)
Weight400g
Life5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.


【Dimension (Unit:mm)】
24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz

【Wiring Diagram】

24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz

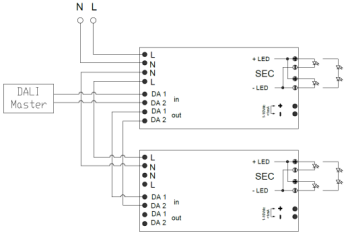

Fig. A DALI Dimming

24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz

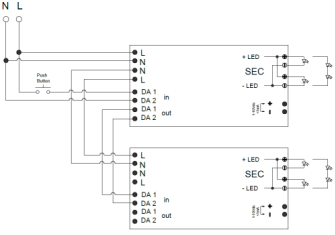

Fig.B Push Dimming

24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz

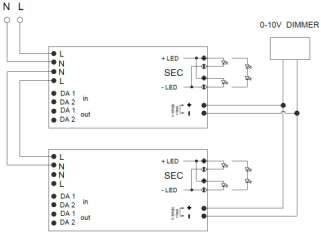

Fig.C 0-10V Dimming


【Derating】
24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz
【Dimming curve】
24v Constant Voltage LED Driver 90W For Strip 220-240Vac 50Hz/60Hz

【ON/OFF & Description of Dimming Operation】

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
B. Dimming:
Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
C. Memory:
PUSH dimming has dimming memory function.
D. Dimming synchronization:
The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
E. DALI dimming mode:
Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
F. Constant voltage dimming drivers cannot be used in lamps with constant current circuits.
