IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
Specifications
Brand Name :
Merrytek
Model Number :
MC628D B1
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs/month
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
White paper box
DC Input Voltage :
12Vdc ±1V
Stand-by Power :
<0.3W
Working Mode :
0-10V DC
Operating Frequency :
5.8 GHz ±75 MHz, ISM Band.
Mounting Height :
15m Max
Operating Temperature :
-35℃…+70℃
IP Rating :
IP65
Lifetime :
5 years warranty
Description

IP65 Tuya Wireless Networking Sensor with dual-channel output for warehouse

【Product Feature】

*Free of gateway for local control

*Set manual on, manual off, dimming level, color temperature easily on Tuya APP

*Schedule control with local timer, light to sleep, light to wake for more energy saving

*Customized dimming level and color temperature can memorized and saved when turn on power again

【Parameters】

Input DC Input Voltage 12Vdc ±1V
Voltage Ripple <300mVp-p
Stand-by Power <0.3W
Wiring Cables, 22AWG
Output Working Mode 0-10V DC
Wiring Cables, 22AWG
Dim Interface 0-10V Dimming < 50mA (Non-constant source)
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor

Daylight threshold:

5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable

Daylight priority: ON/OFF value

(5lux/15Lux/30Lux/50Lux)/150Lux

100Lux/200Lux

150Lux/300Lux
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)

Operating

Environment

 Operating Temperature -35℃…+70℃
Storage Temperature Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing)
Others Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
IP Rating IP65
Protection Class Class II
Installation M20 side mount
Cables 3*22AWG,exposed line length 300mm
Dimension See dimension
Package White paper box
Net Weight 70g
Lifetime 5 years warranty@Ta 230V full load

Note

1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.3m/s.
【Dimension (mm)】

IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse

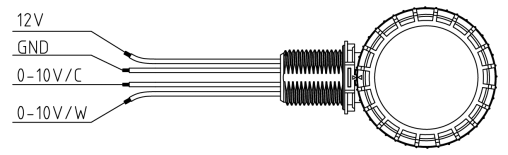

【Wiring】

IP65 Tuya Wireless Networking Sensor With Dual-channel Output For Warehouse
