MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
Specifications
Brand Name :
merrytek
Model Number :
NC119S
Certification :
CE,UKCA
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiation
Delivery Time :
1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Packaging Details :
Packed in bubble bag firstly, and then reinforced with carton for outer packing
Operating Voltage Range :
220-240Vac
Stand-by Power :
<0.1W
Surge test :
1KV(L/N，EN61000-4-5)
Working mode :
On/off
Load capacity :
200w LEDs
Max surge capacity :
20A (50% Ipeak, twidth =500uS, 230Vac full load, coldstart); 40A (50% Ipeak, twidth =200uS, 230Vac, full load, coldstart）
Operation frequency :
5.8GHz±75MHz
Transmitting power :
1mW max
Hold time :
5S/30S/1min/3min/5min/10min/20min/30min
Detection area :
100%/75%/50%/25%
Daylight threshold :
2Lux/10Lux/25Lux/50Lux/Disable(Ambient diffusion status)
Detection radius (100% detection area) :
Ceiling Mounting at 3m height: 0.3m/S ≥3.5m，1m/S≥2.5mWall Mounting at 2m height: 0.3m/S ≥8m，1m/S ≥4m
Mounting Height :
Typical Value: 3m（4m Max)
Detecting Angle :
Ceiling mount 150°
Operating Temperature :
-25℃~60℃
TC :
80℃
IP Rating :
IP20
Protection Class :
Class II
Installation :
Built-in
Dimension :
61.0*29.0*23.0mm
Life time :
50,000hours @Ta 230V full load
Description

MC119S on/off function motion sensor mini size for wall lamp and tri-proof light for euro market

Features

1. Conform to new ERP standards; low stand-by power.

2. 5.8GHz microwave license-free ISM wave band; bulk order arecompliant with RED approval.

3. Compact size design, can be built-in most of light fixtures.

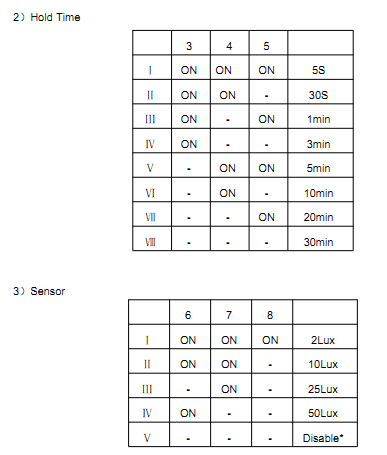

4. Simple to operate: adjusting DIP switches to change detectionarea, hold time, daylight sensor and other parameters.

5. Input and output terminals are convenient for connecting

Please download the spec.sheet:

MC119S spec. 2023.05.06.pdf

Function

On/OFF Function
