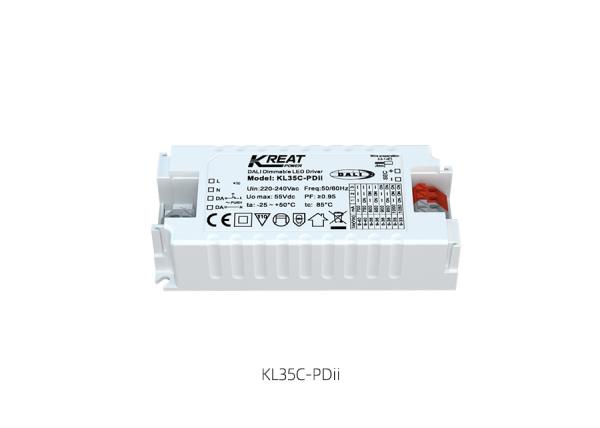

Mini Dimmable LED Driver 12W/20W/35W with Detachable Crimping of C.C.

KL12C-PDii / KL20C-PDii / KL35C-PDii

1. Description

--Mini size and detachable crimping suit for various luminaires

--Flicker-free for whole dimming range

--Stand-by power below 0.5W

--Primary dimming with push button

--Built-in DALI interface DT6

--Protection: short circuit / over temperature/ over voltage

--Derating current for over high ambient temperature

--Push dim with memory function

--5 year warranty

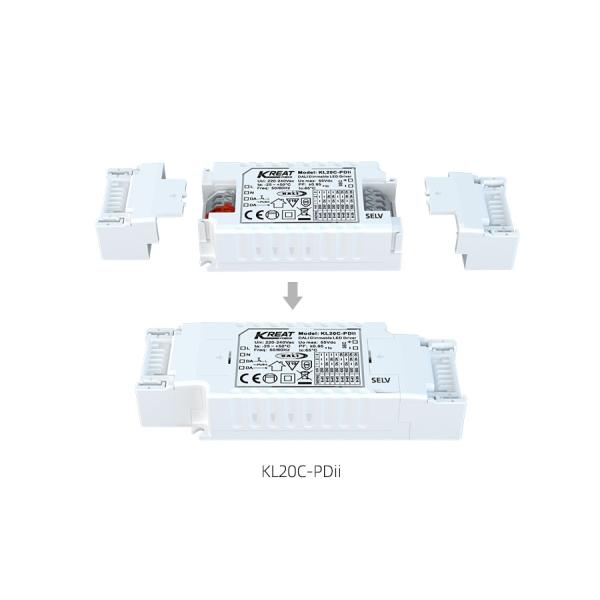

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

2. Parameters

Mini series KL12C-PDii KL20C-PDii KL35C-PDii
Input Operating Voltage 198-264Vac 50Hz /60Hz
Rated Input Voltage 220-240Vac 50Hz /60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.08A Max. 0.12 Max. 0.2 Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.90 ≥ 0.93 ≥ 0.93
Total harmonic distortion Typical: 13% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency(@230Vac,100% load) 83% 85% 85%
Wiring Method 0.75-1.5mm2 0.5-1.0mm2 0.5-1.0mm2
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or lickering-Free) Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac,)
No-load output voltage 30V DC Max. 55V DC Max. 55V DC Max.
Load output voltagerange 6-24V DC 9-45V DC 9-40V DC
Full load output power 12W 20W 35W
Load output current 350mA(6-24) 500mA(6-24) 550mA(6-22) 700mA(6-17) 200mA(9-45) 250mA(9-45) 300mA(9-45) 350mA(9-45) 400mA(9-45) 450mA(9-45) 500mA(9-40) 550mA(9-36)

700mA(9-40) 750mA(9-40) 800mA(9-38) 850mA(9-36)

900mA(9-36) 950mA(9-36) 1000mA(9-35) 1050mA(9-33)
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.5-1.0mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)

Output short

circuit protection

 Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
With crimping 88*52*25.5mm 116*40.5*2mm 136*42.5*24mm
Without crimping 78*40.5*22mm 96*42.5*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement Instruction+clapboard+outer carton(K=A)
Weight 105g 159g 209g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

3. Dimension (Unit:mm)

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

4. Wiring Diagram

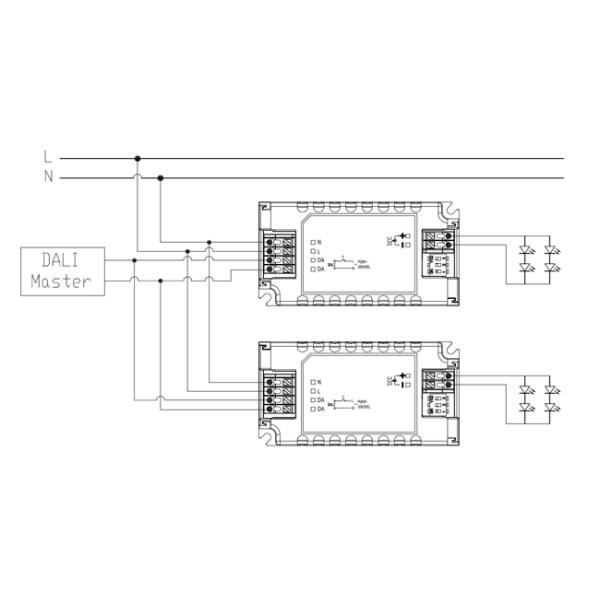

Fig. A DALI Dimming

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

Fig.B Push Dimming

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

5. Derating

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

6. Dimming curve

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

7.Current gear setting

●:ON ○:OFF (SEC1 SEC2)

Detachable Crimping Mini Dimmable LED Driver 12W/20W/35W C.C. KL12C-PDii / KL20C-PDiii / KL26C-PDii / KL35C-PDii

8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.

9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
